Standard equipment:
- 1 filling connection to be chosen between DIN 232, DIN 300 or INT / YOKE 232 bar
- 1 filling hose 1.2m long

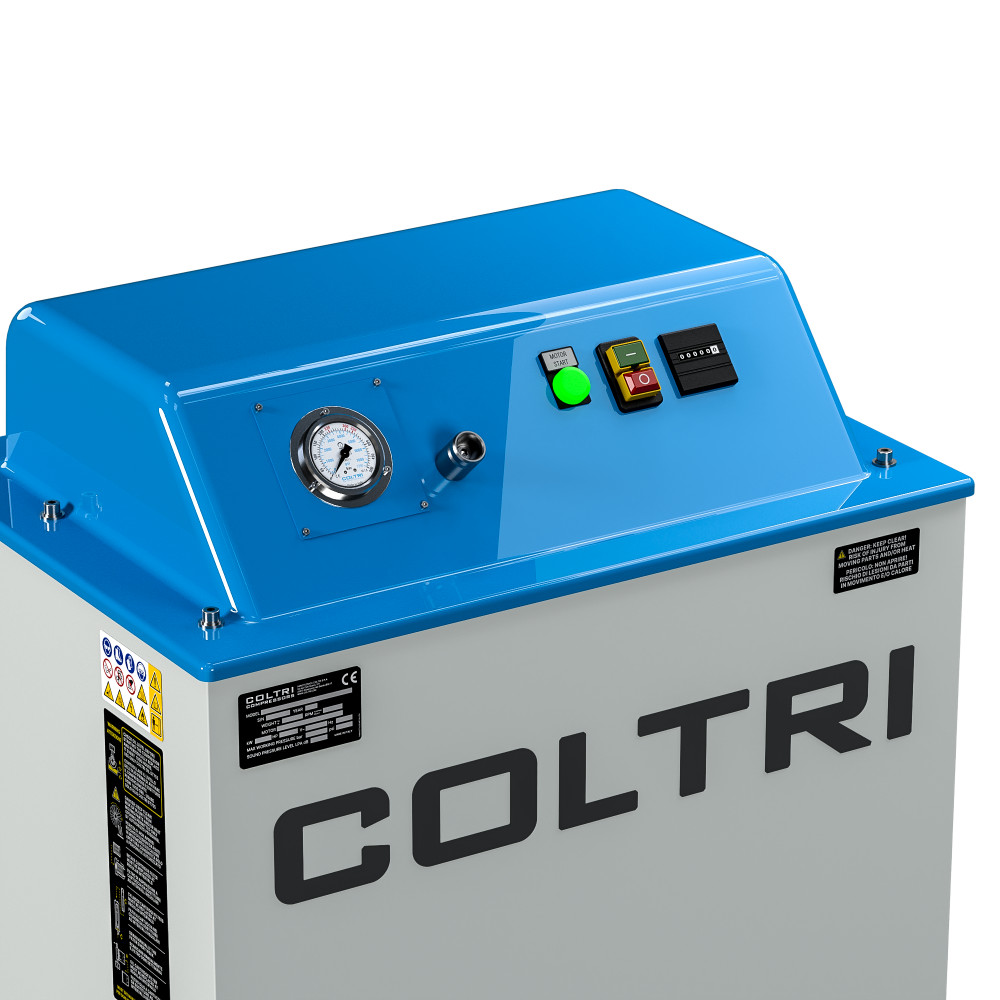

- Hour counter
- Pressure maintenance valve
- Hitch-hiking
- MAXIFILTER purification system

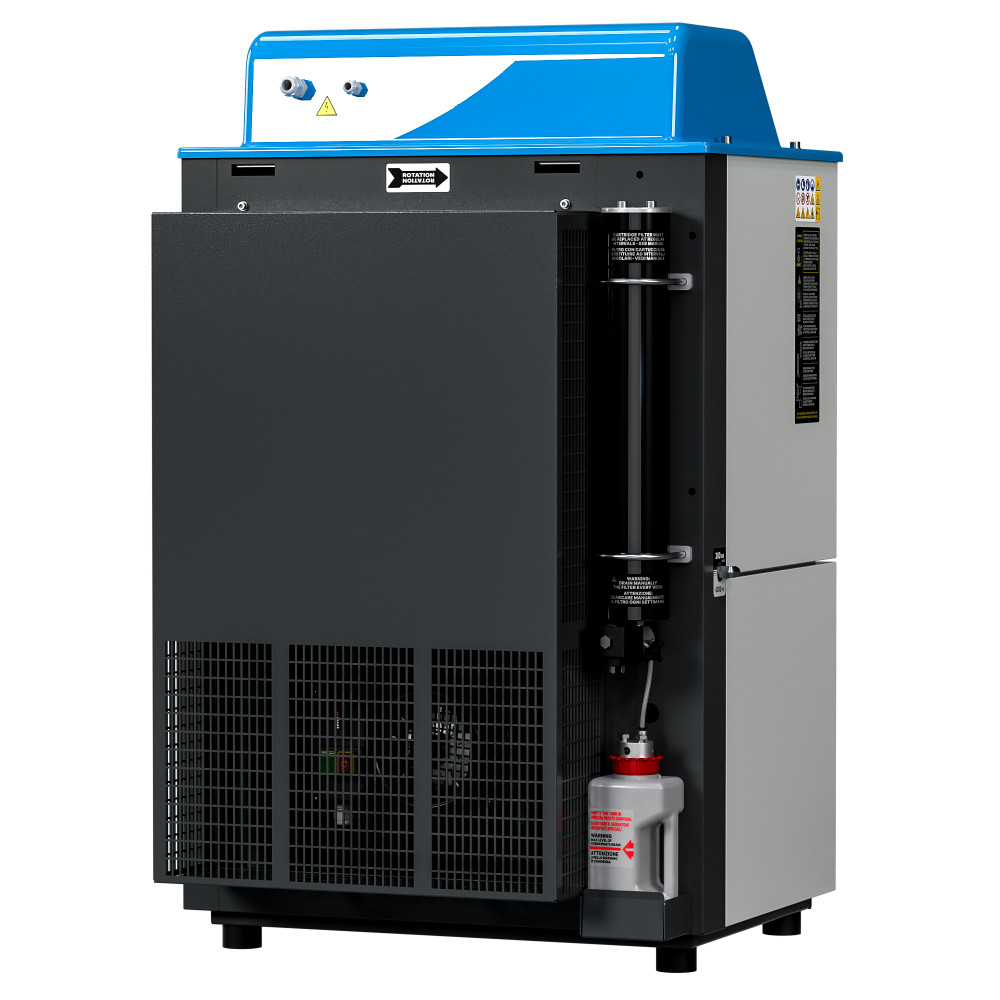

- Automatic condensate drain with conveyor system in the tank
- Frame color RAL 7035 + RAL 6018
Technical data:
- Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen
- Intake pressure: Atmospheric max 300 millibars
- Nominal pressure: 250 bar / 330 bar / 360 bar
- Working pressure: 232 bar / 300 bar / 330 bar
- Max working pressure: 330 bar
- Permissible ambient temperature range: -10° C ÷ +40° C
- Permissible altitude: 0 ÷ 1.500 m SLM
- Max permissible tilt: 6°
- Design: Basic
- Operating voltage, standard: 230 V; 50 Hz
- Other operating voltage: On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%.
230 V, 50 Hz / 440 V, 60 Hz / 230 V, 60 Hz
- Oil: Synthetic Coltri Oil ST 755
- Oil change interval: 1 year / 50 h
- Frame: Steel thickness 1.5 mm – color RAL 5015 – Powder coating – scratch-resistant
- Noise: LpA 66 dB
