Coltri Ergo EM - Single Phase

Name: Coltri Ergo EM - Single Phase
Brand: Coltri
SKU: SC002000
Price: 8725 EUR
Availability: InStock

Item number:

SC002000

In supplier stock

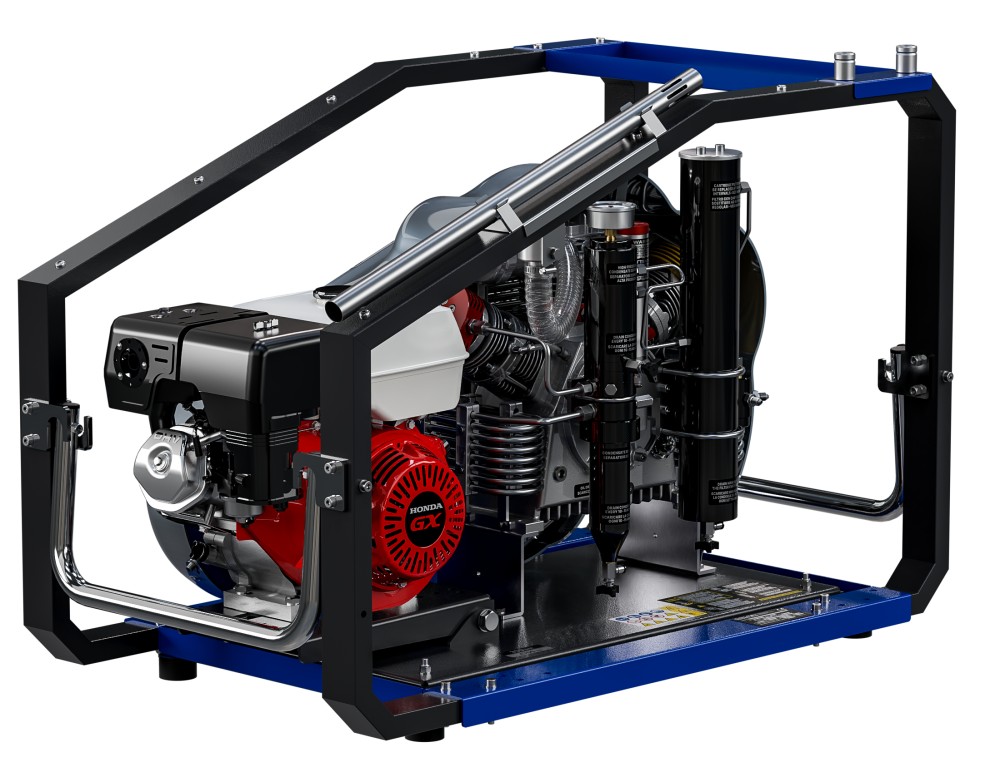

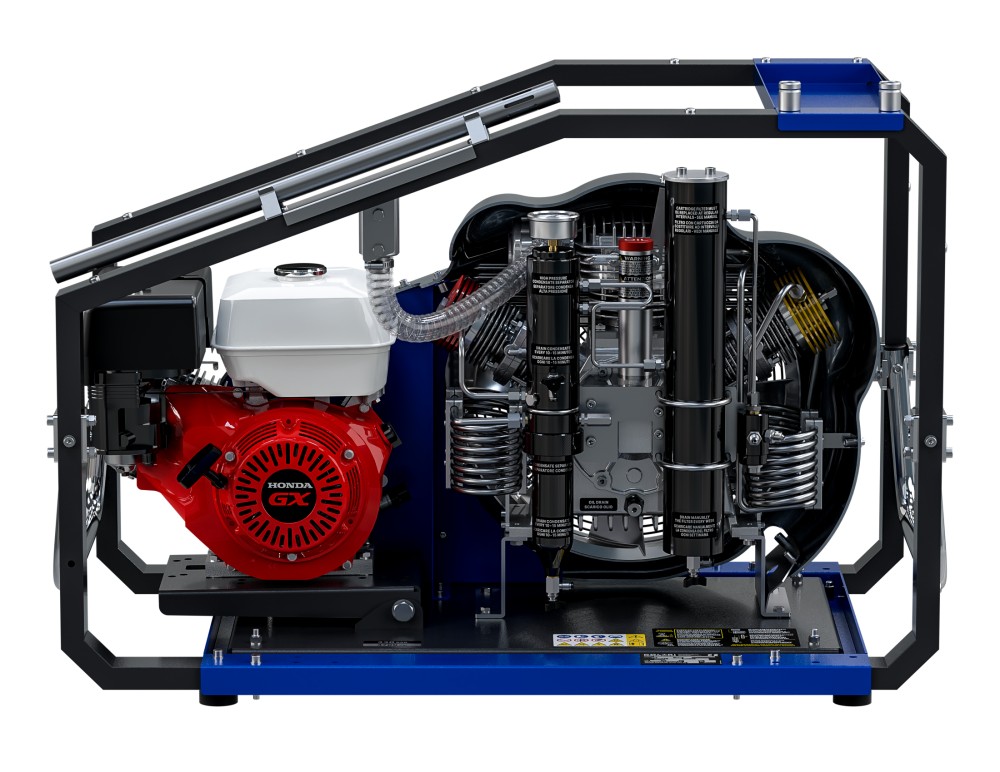

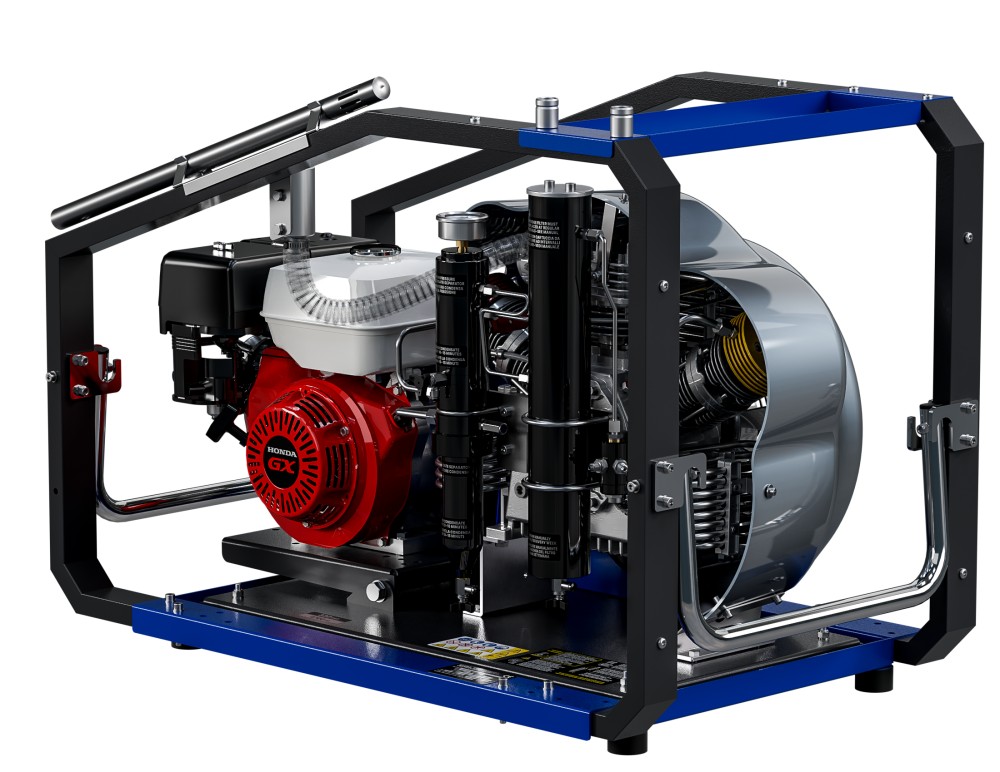

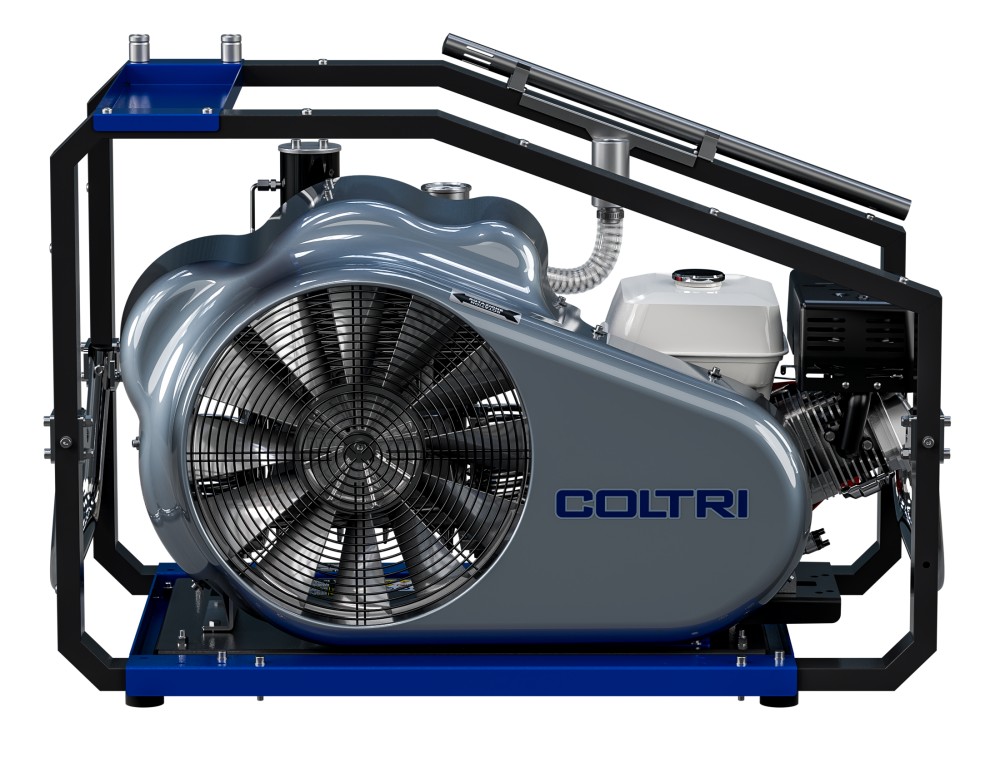

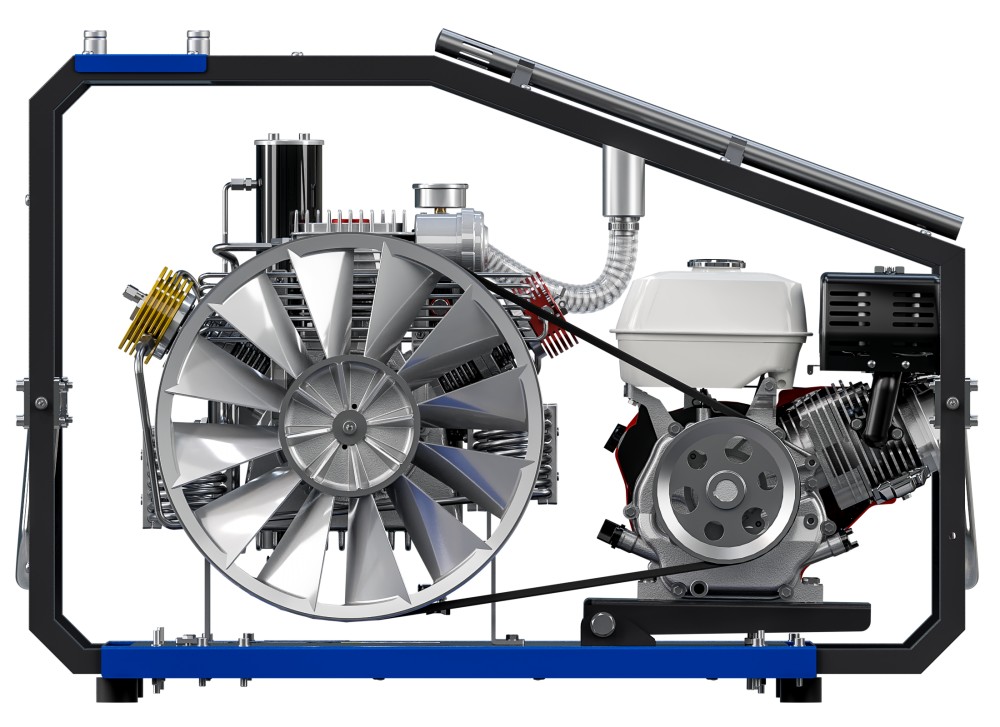

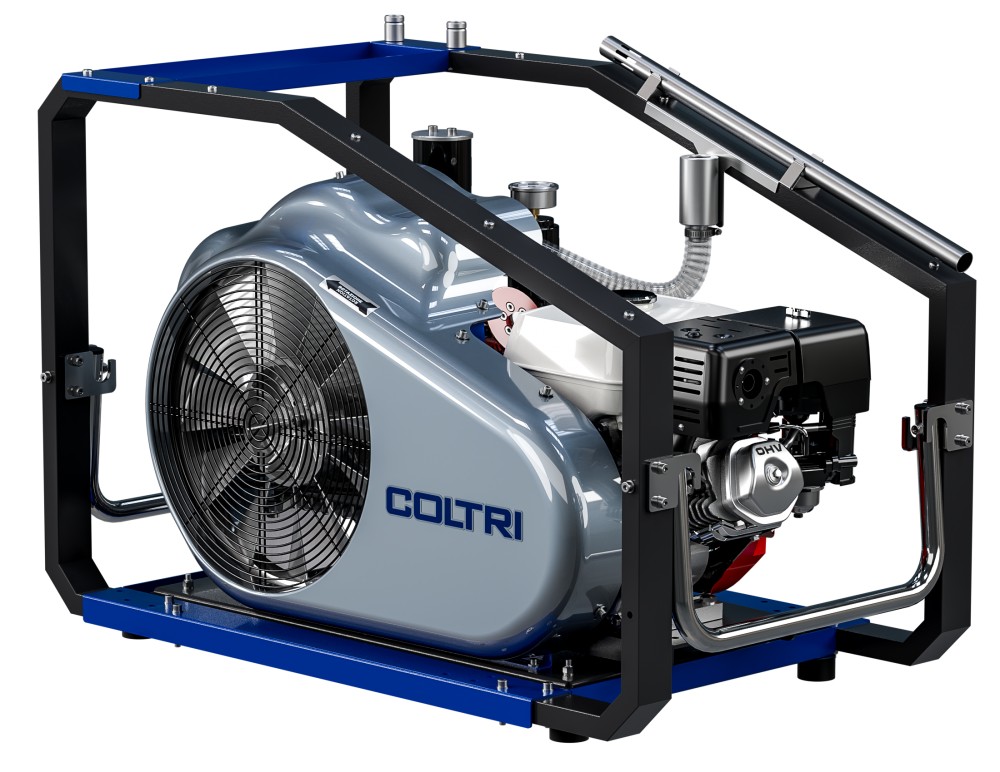

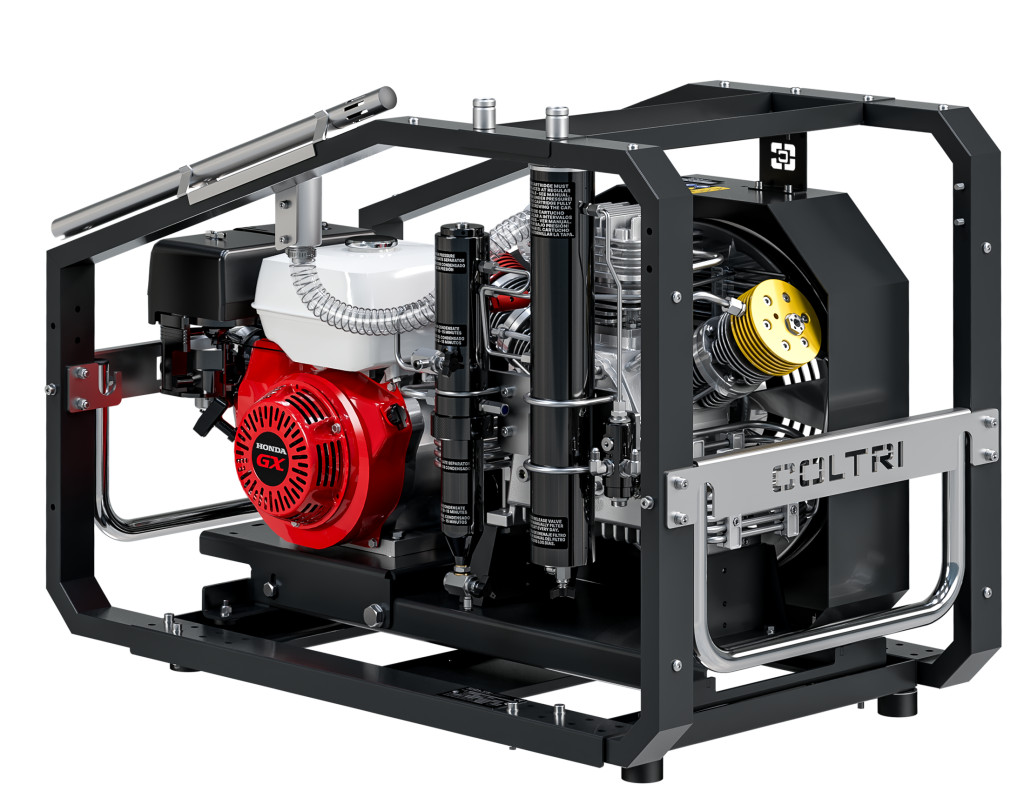

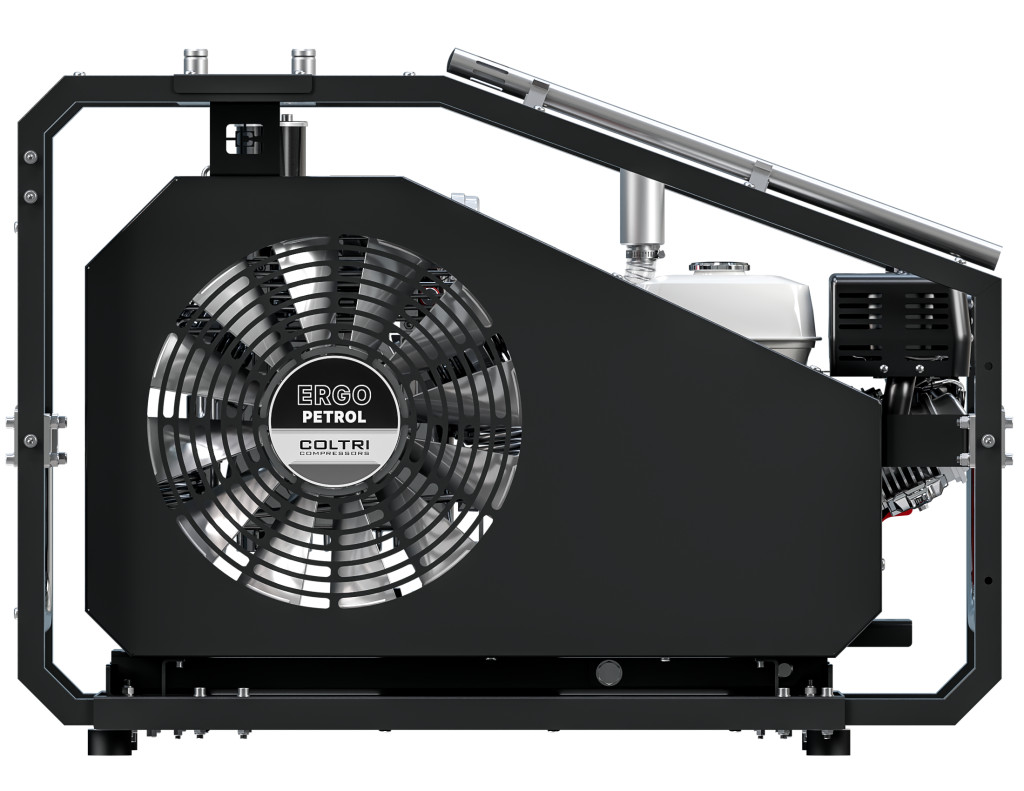

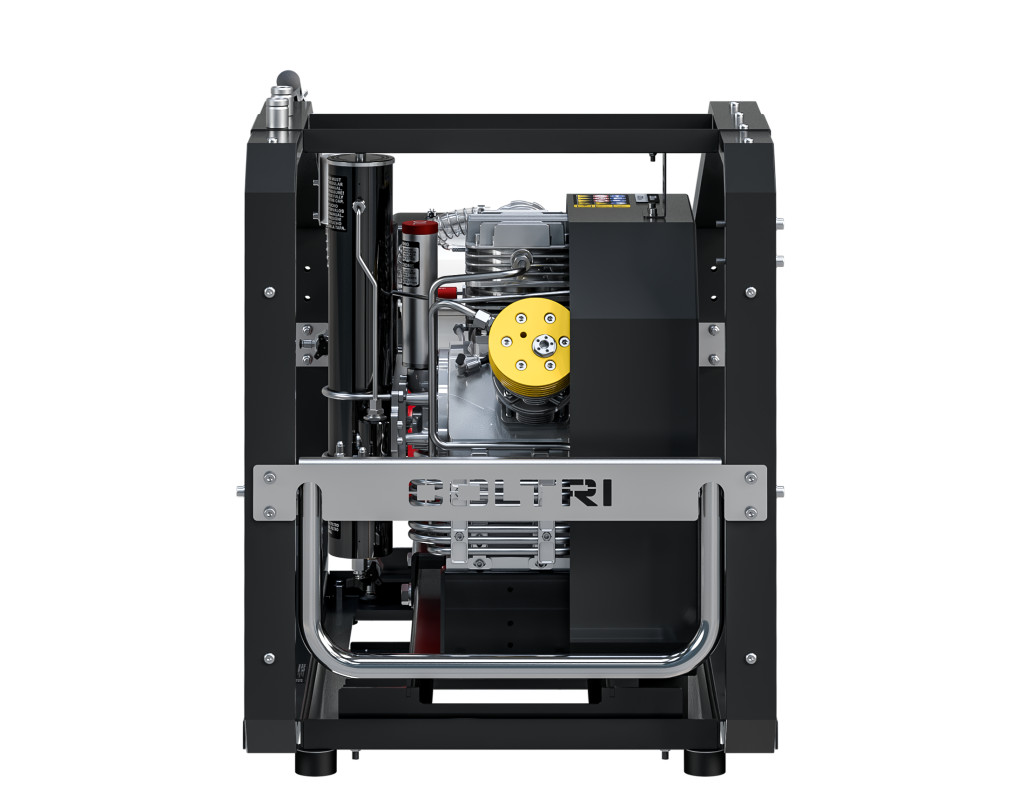

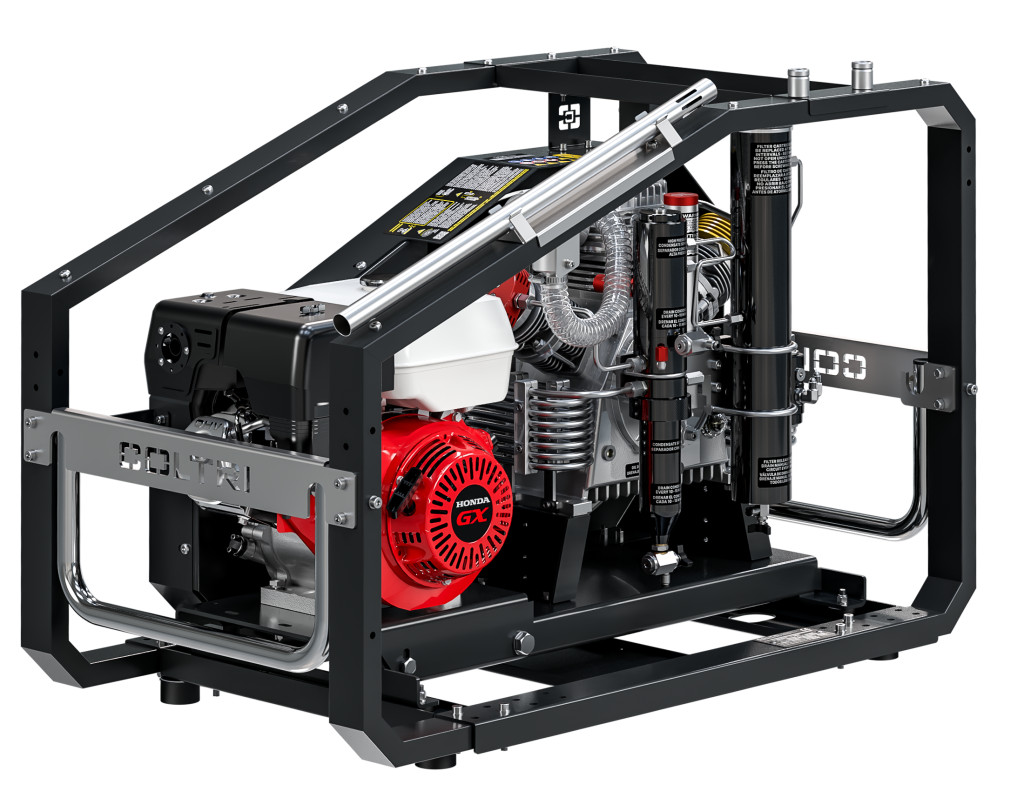

Ergo Petrol is designed to deliver high performance even in extreme environments. A portable and robust compressor that combines efficiency and freedom of use thanks to its gasoline engine.

Standard equipment includes two high-pressure hose connections (232 to 330 bar) and a filter system Maxifilter with condensate separation system.

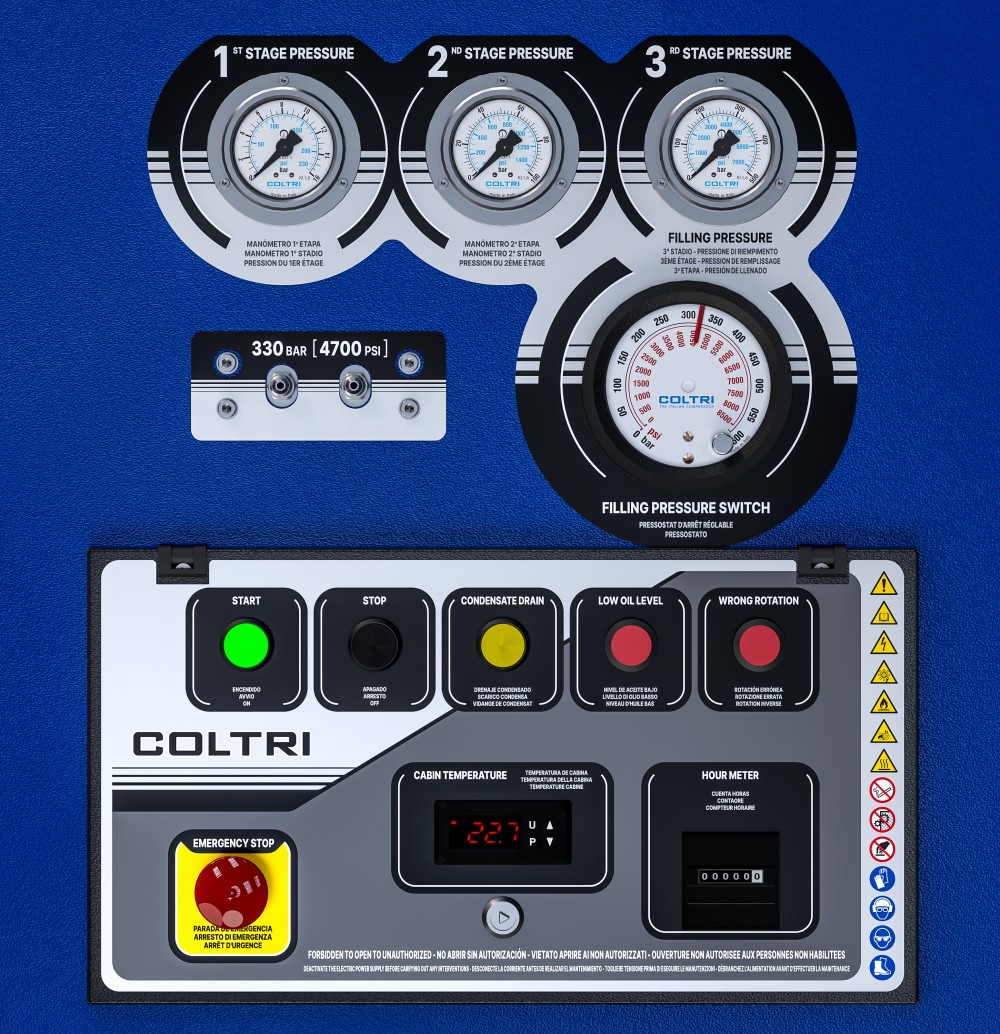

C-Monitor, digital hour meter and remote charging panels available as options!

Brand:

Coltri

Shipping time, if product is in supplier stock:

2-4 weeks

Type:

270L/min

Max. Working Pressure

8 725.00 €

10 000.00 €

Savings 1 275.00 €

Details

Details

Basic equipment:

- 2 cylinder connections can be selected between DIN 232, DIN 300 or INT / YOKE 232 bar
- 2 hoses 1.2 m long
- Pressure relief valve

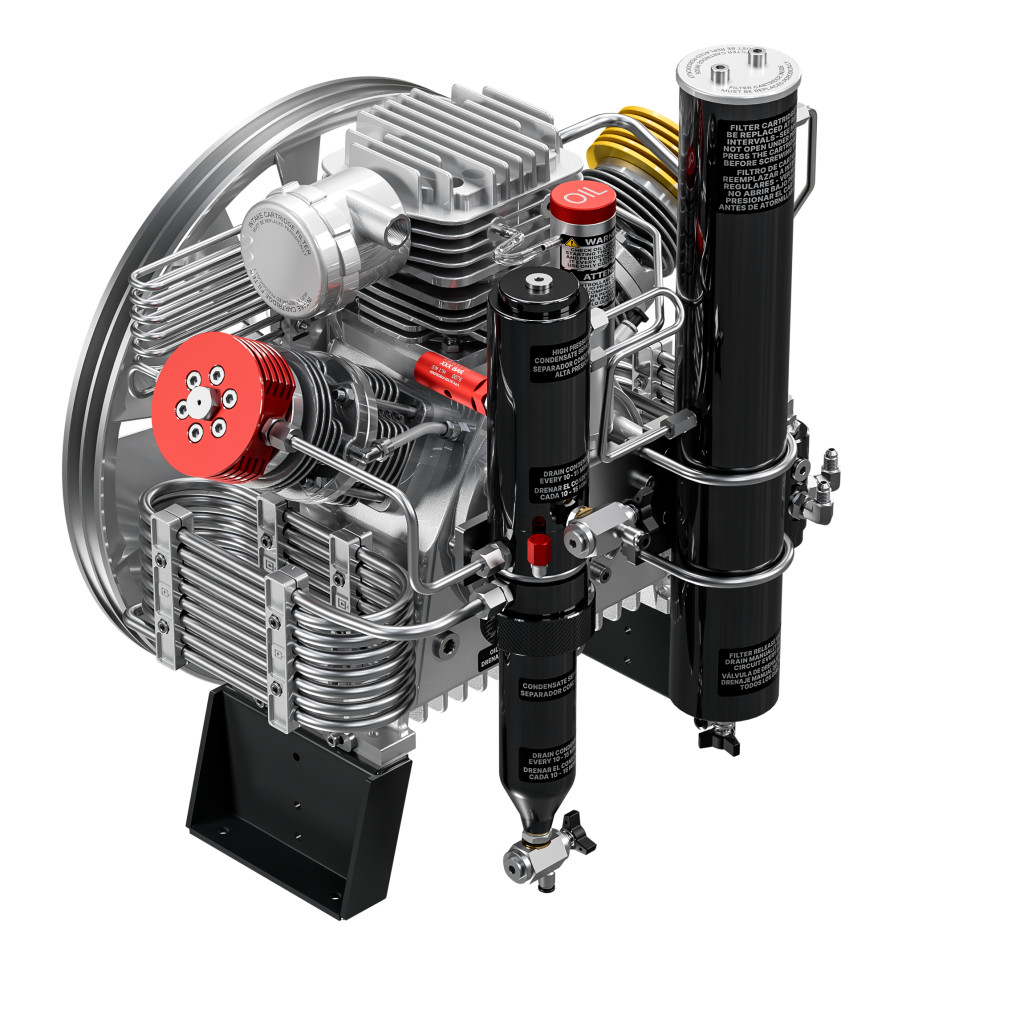

- Maxifilter filter system
- Automatic direction of rotation control
- Oil level control with automatic shutdown
- Frame color Black RAL 9005

Size: 122 x 63 x 77 cm
Weight: 121 kg

Technical data:

- Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen

- Intake pressure: Atmospheric max 300 millibars

- Nominal pressure: 250 bar / 330 bar / 360 bar

- Working pressure: 232 bar / 300 bar / 330 bar

- Max working pressure: 420 bar

- Permissible ambient temperature range: -10° C ÷ +40° C

- Permissible altitude: 0 ÷ 1.500 m SLM

- Max permissible tilt: 6°

- Design: Protective Cabinet

- Oil: Synthetic Coltri Oil ST 755

- Oil change interval: 1 year / 1,000 h

- Frame: Steel thickness 1.5 mm – color RAL 9005 – Powder coating – scratch-resistant

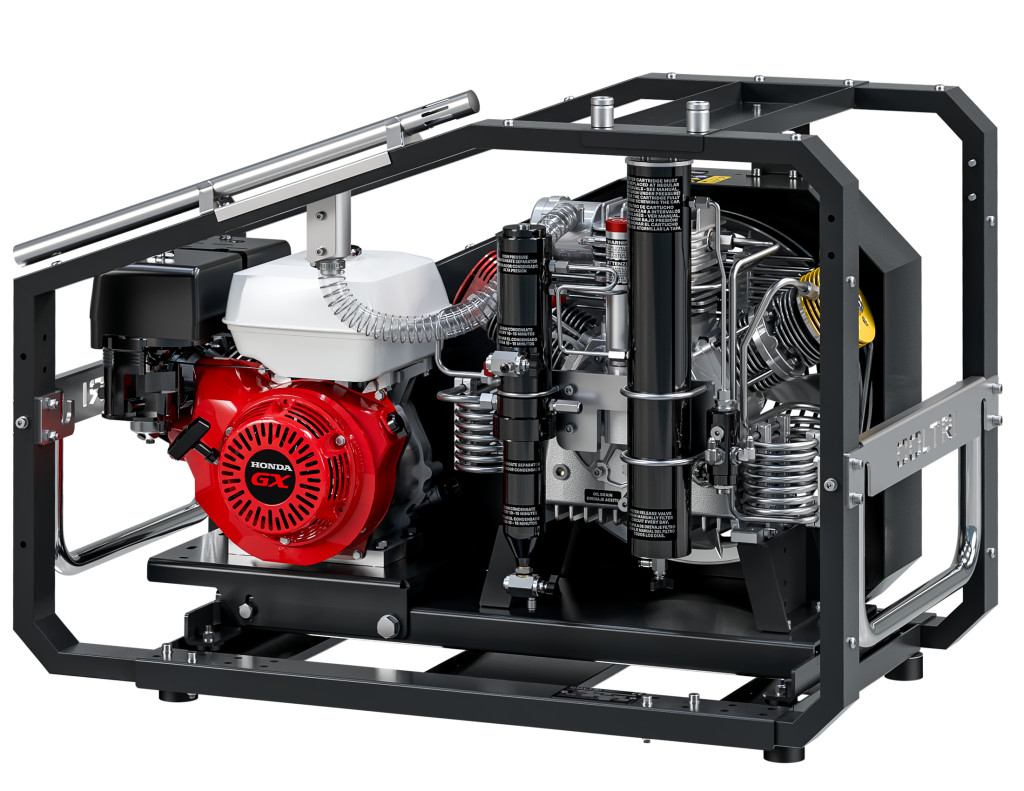

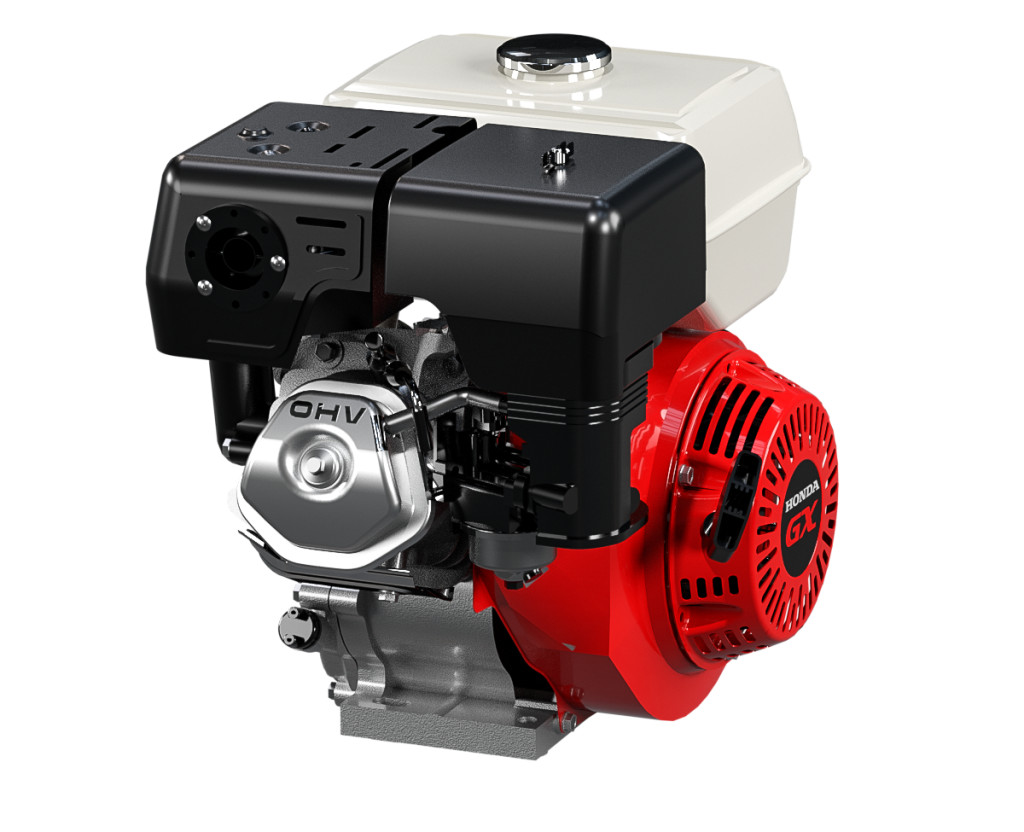

- Motor: Petrol Honda GX 270 6,6 KW / 9 HP
