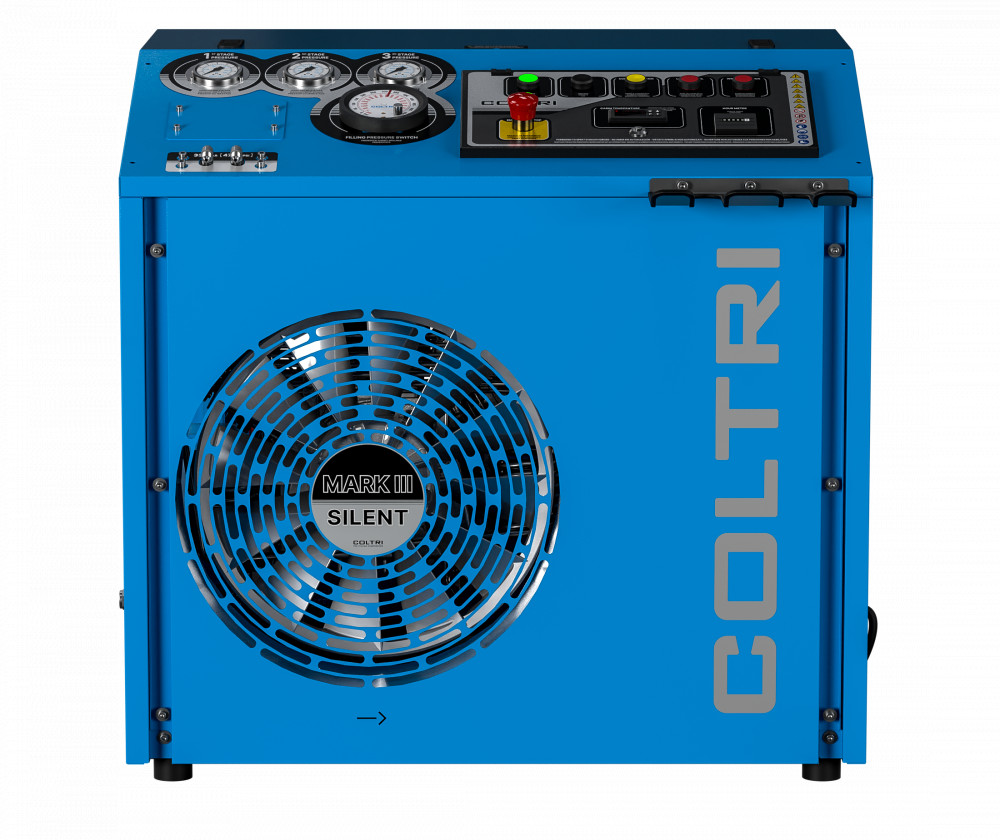

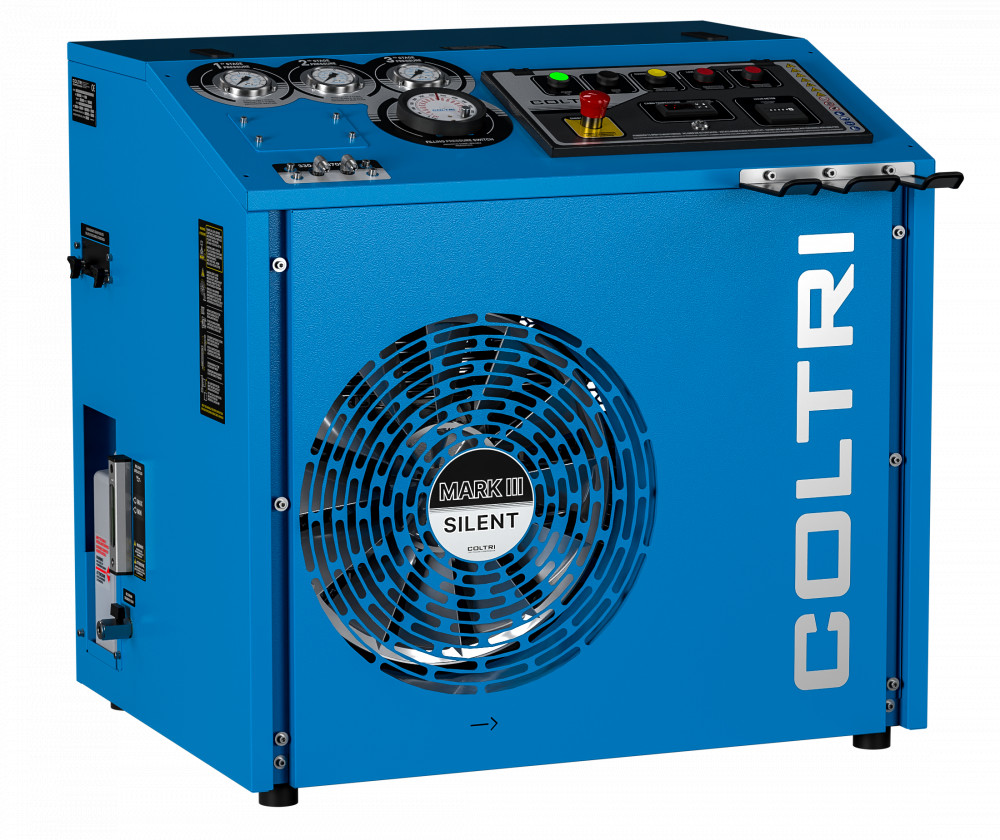

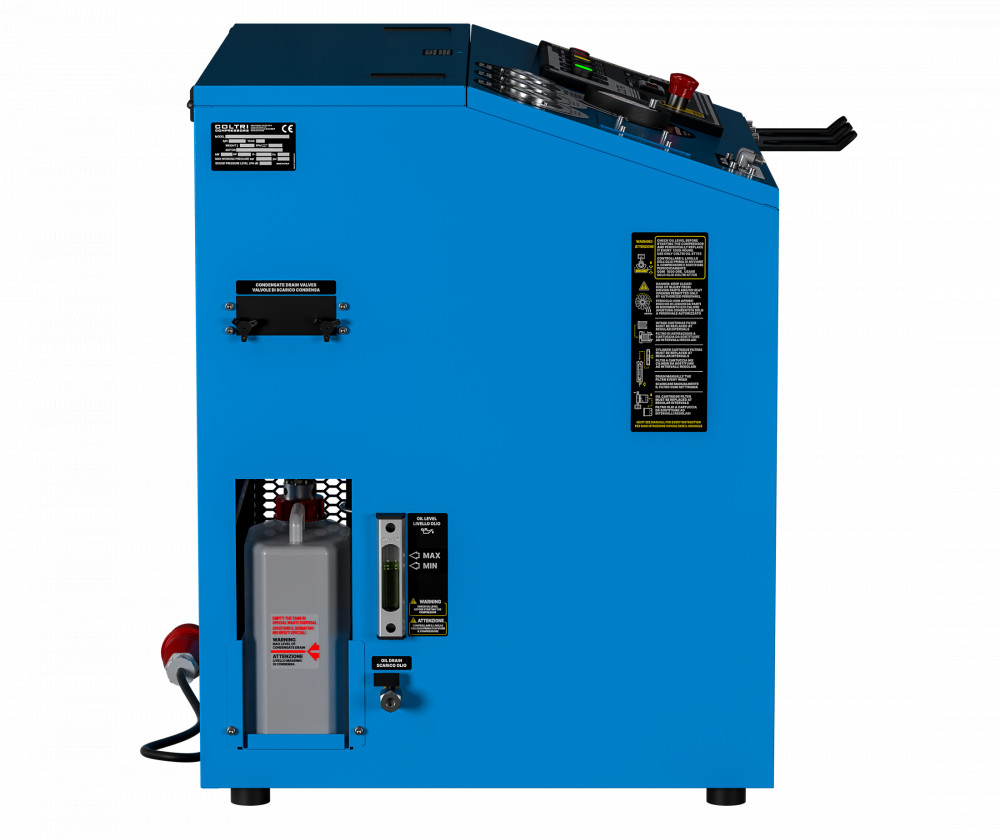

Coltri Mark III Silent EM - Single Phase

Name: Coltri Mark III Silent EM - Single Phase
Brand: Coltri
SKU: SC002058
Price: 9625 EUR
Availability: InStock

Item number:

SC002058

Coltri Mark III Silent EM - Single Phase

In supplier stock

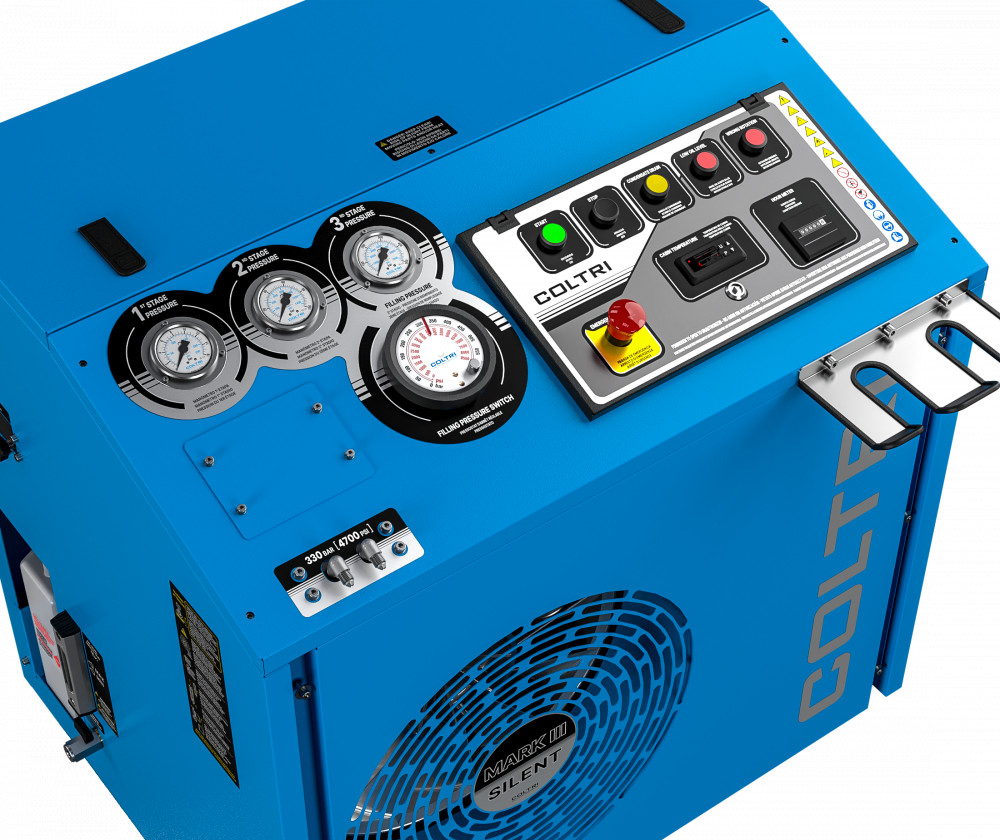

Designed with control systems that allow effective monitoring of operations:

interstage pressure, oil level, cabin internal temperature and direction of rotation detector.

Brand:

Coltri

Shipping time, if product is in supplier stock:

2-4 weeks

Type:

210L/min

Max. Working Pressure

9 625.00 €

11 125.00 €

Savings 1 500.00 €

Details

Details

Standard equipment:

- 2 Cylinder connections to choose from DIN 232, DIN 300 or INT / YOKE 232 bar
- 2 whips 1.2m long
- Pressure maintenance valve
- Interstage control gauges
- Maxifilter filter system
- Cabin internal temperature with automatic switch-off
- Automatic direction of rotation control
- Pressure switch with automatic shutdown
- Oil level control with automatic shutdown
- Automatic condensate drain with conveyor system in the tank
- Frame color Black RAL 9005

Technical data:

- Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen

- Intake pressure: Atmospheric max 300 millibars

- Nominal pressure: 250 bar / 330 bar / 360 bar

- Working pressure: 232 bar / 300 bar / 330 bar

- Max working pressure: 232 bar (elettrico monofase) – 420 bar (elettrico trifase)

- Permissible ambient temperature range: -10° C ÷ +40° C

- Permissible altitude: 0 ÷ 1.500 m SLM

- Max permissible tilt: 6°

- Design: Basic

- Operating voltage, standard: 230 V; 50 Hz / 400 V; 50 Hz

- Other operating voltage: On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%.
230 V, 50 Hz / 440 V, 60 Hz

- Oil: Synthetic Coltri Oil ST 755

- Oil change interval: 1 year / 1,000 h

- Frame: Steel thickness 1.5 mm – color RAL 9005 – Powder coating – scratch-resistant
