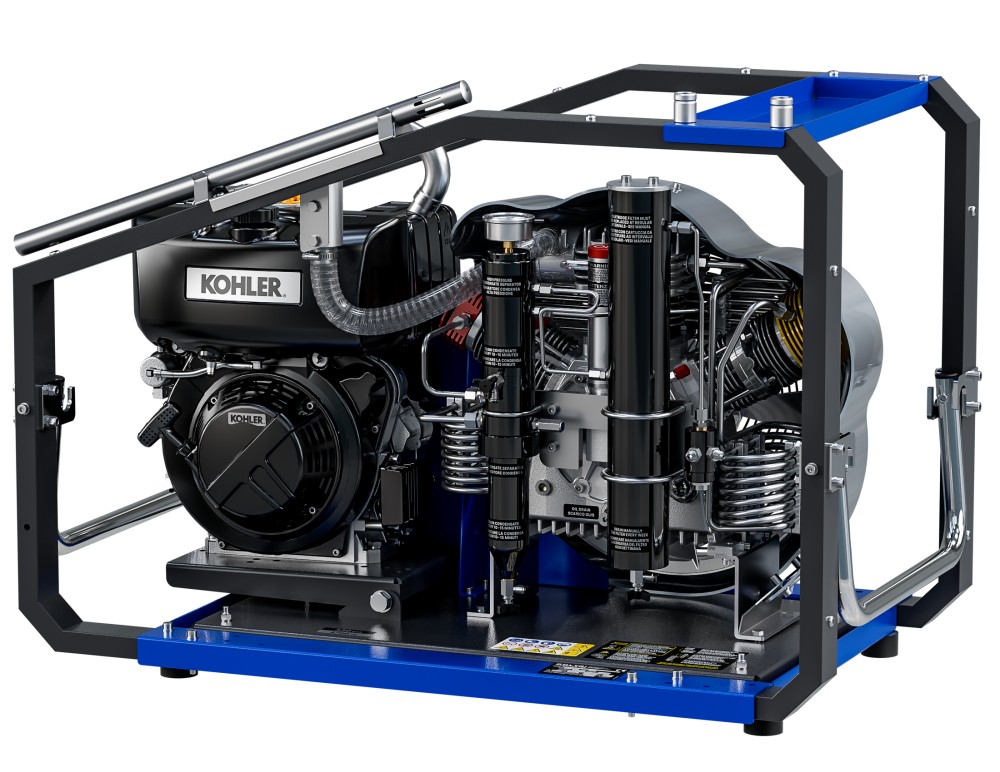

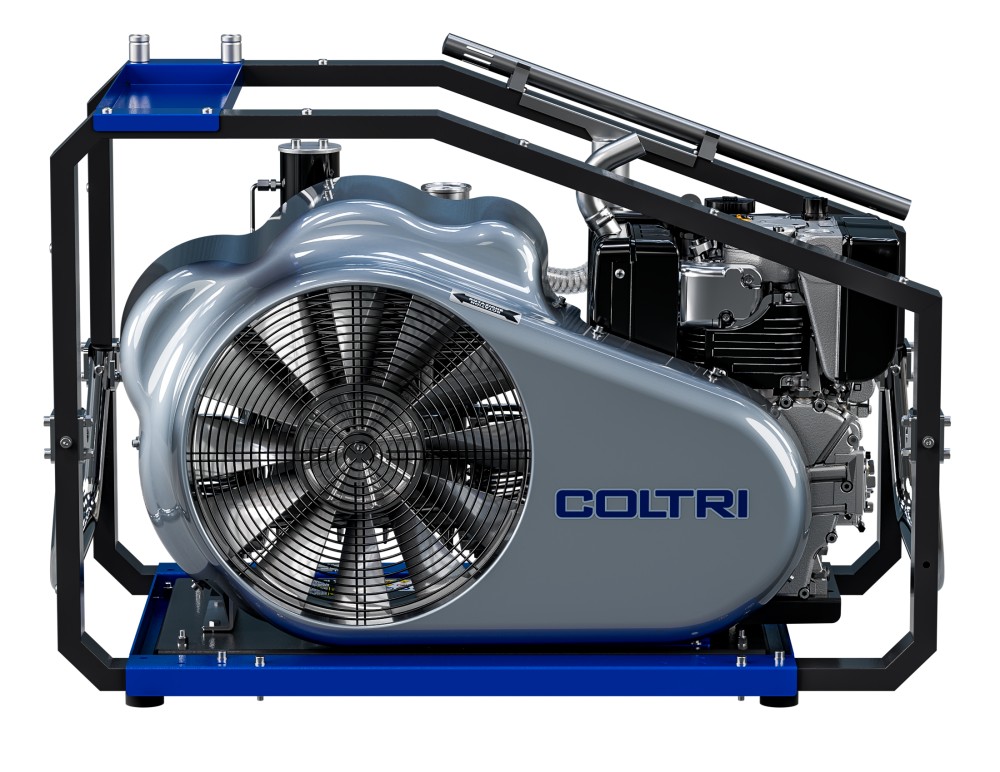

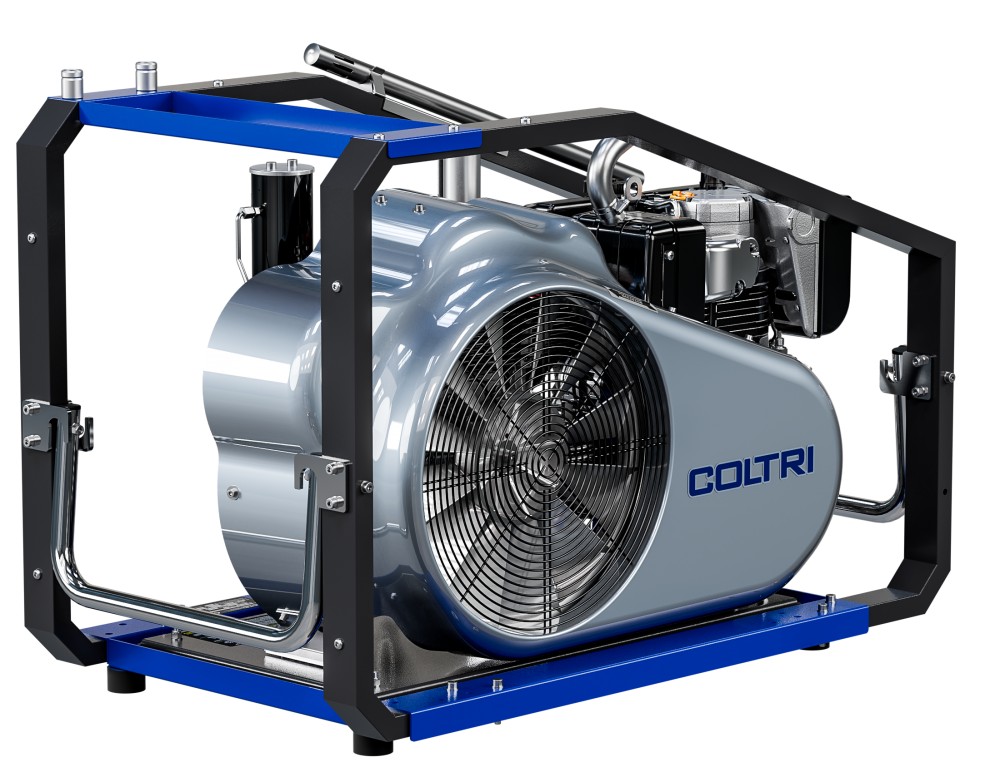

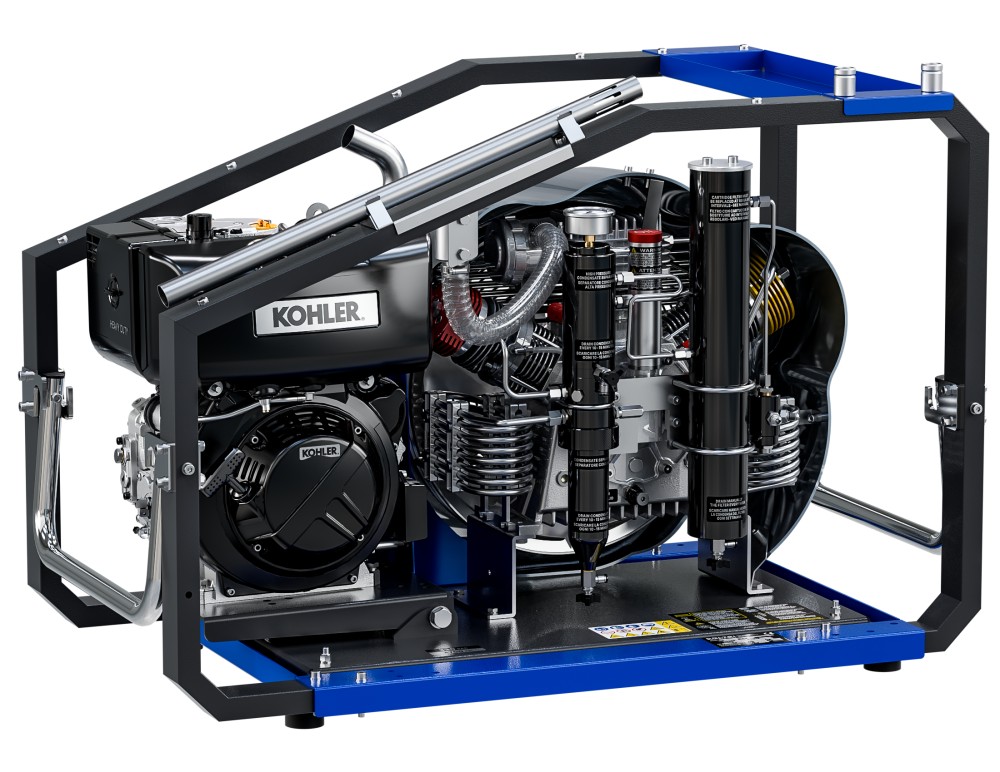

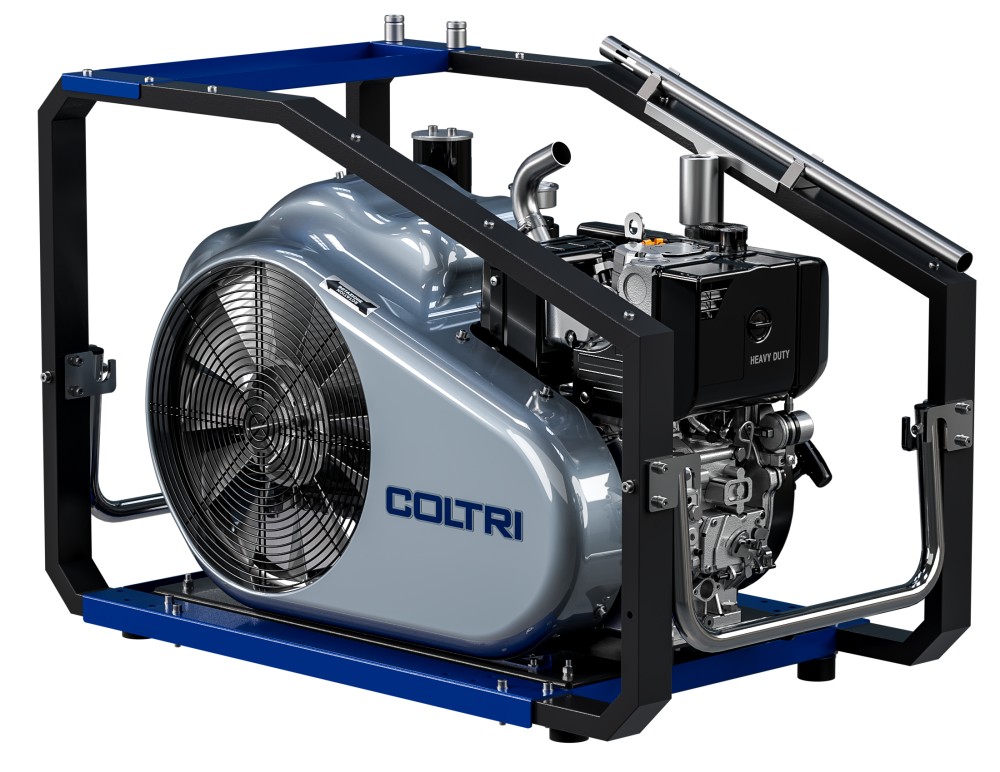

Ergo Diesel combines compactness and range, thanks to a reliable diesel engine designed for use in demanding conditions. The ideal solution when high performance is needed, even without power supply.
Standard equipment includes two high-pressure hose connections (232 to 330 bar) and a filter system Maxifilter.
C-Monitor, digital hour meter and remote charging panels available as options.
Basic equipment:
- 2 cylinder connections can be selected between DIN 232, DIN 300 or INT / YOKE 232 bar
- 2 hoses 1.2 m long
- Pressure relief valve
- Control instruments between stages

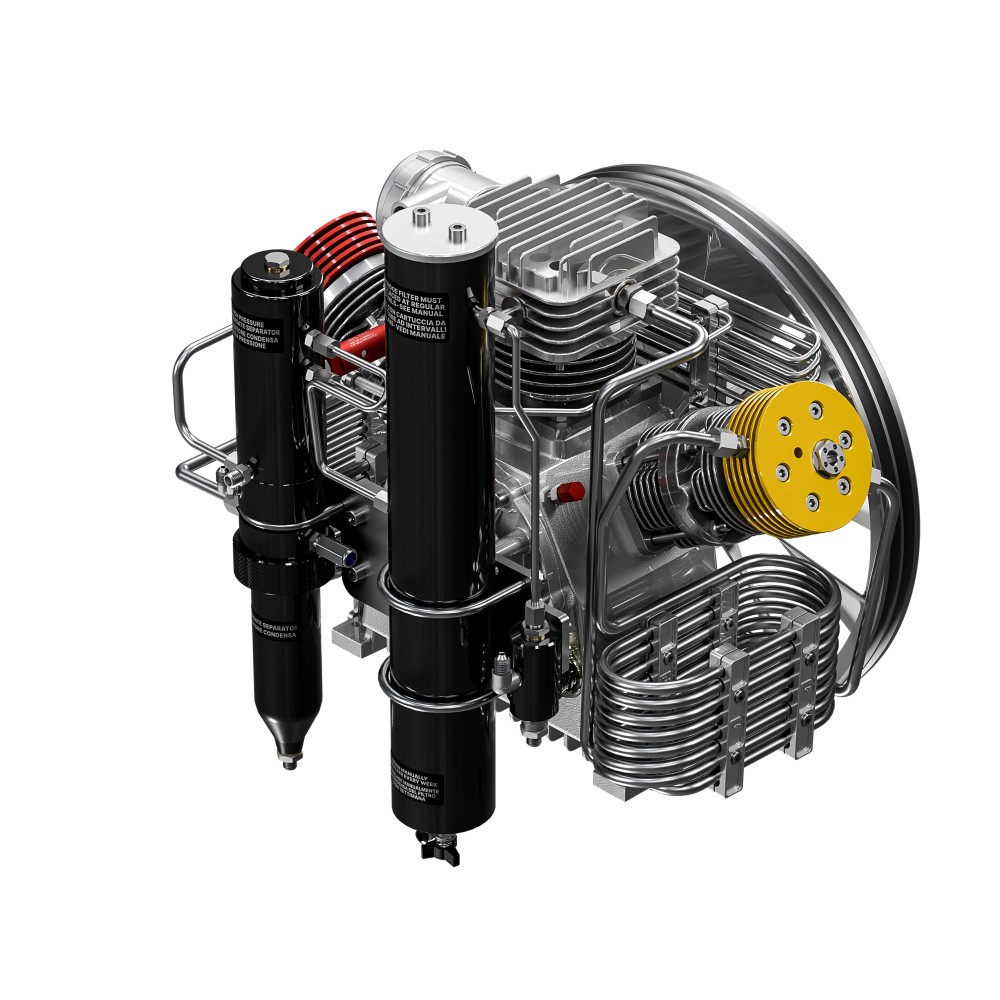

- Maxifilter filter system
- Cabin interior temperature with automatic shutdown
- Automatic direction of rotation control
- Pressure switch with automatic stop
- Oil level control with automatic shutdown
- Automatic condensate drainage with a transport system in the tank
- Frame color Black RAL 9005
Size: 122 x 63 x 77 cm
Weight: 121 kg
Technical data:
- Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen
- Intake pressure: Atmospheric max 300 millibars
- Nominal pressure: 250 bar / 330 bar / 360 bar
- Working pressure: 232 bar / 300 bar / 330 bar
- Max working pressure: 420 bar
- Permissible ambient temperature range: -10° C ÷ +40° C
- Permissible altitude: 0 ÷ 1.500 m SLM
- Max permissible tilt: 6°
- Design: Protective Cabinet
- Oil: Synthetic Coltri Oil ST 755
- Oil change interval: 1 year / 1,000 h
- Frame: Steel thickness 1.5 mm – color RAL 9005 – Powder coating – scratch-resistant

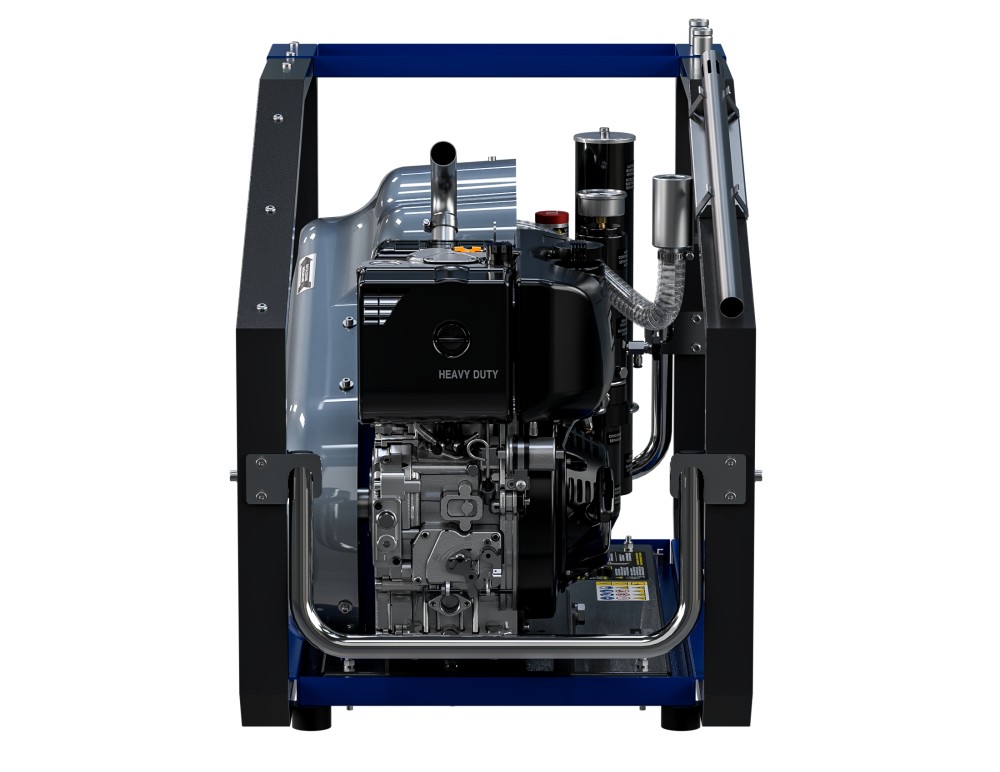

- Motor: Diesel Yanmar GX 270 6,8 KW / 9,2 HP
