Coltri Icon LSE 100 ET - III. Phase

3 387.50 €

2 874.75 €

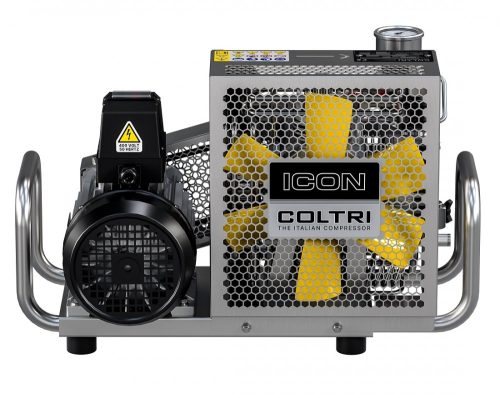

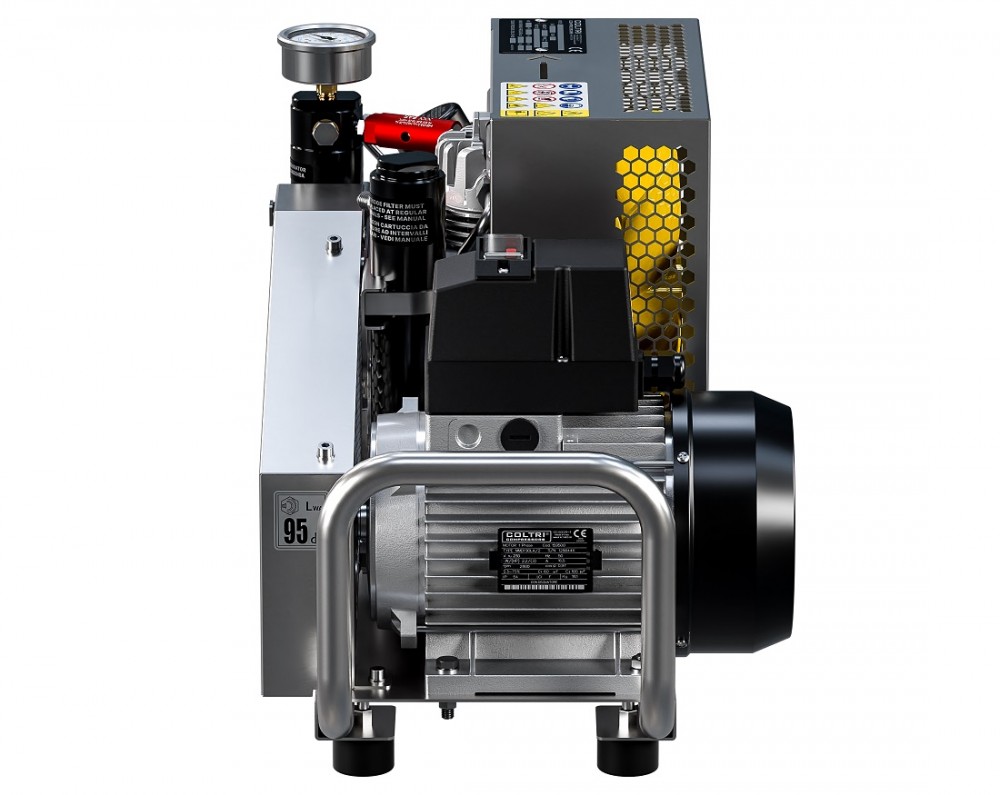

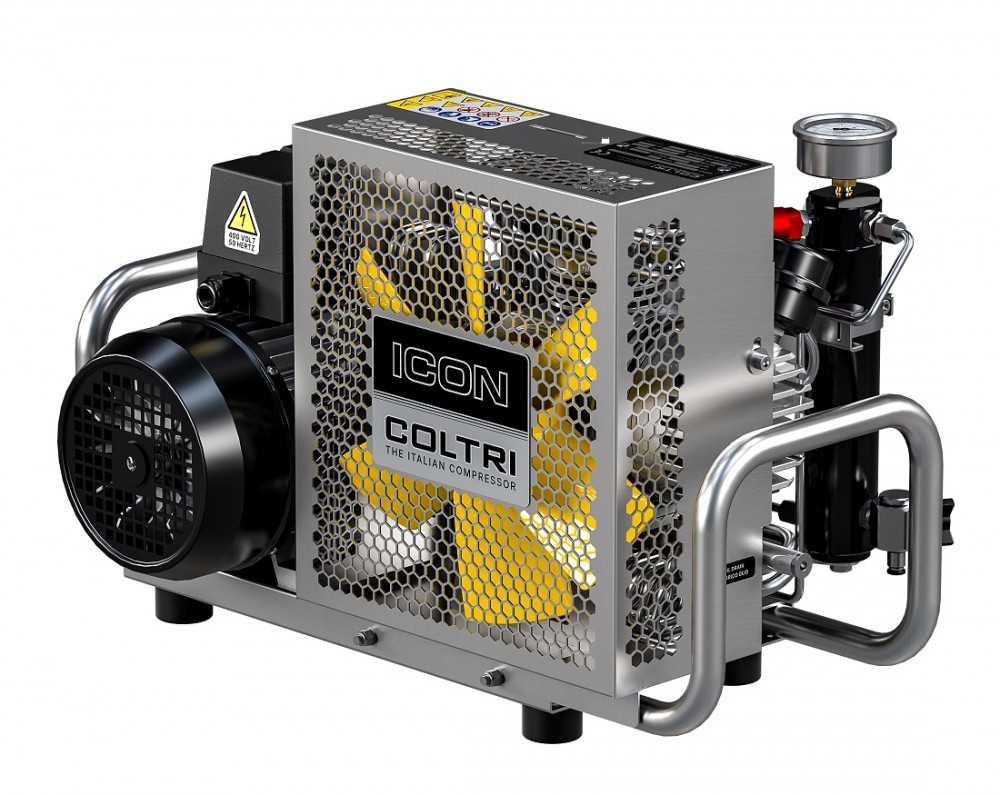

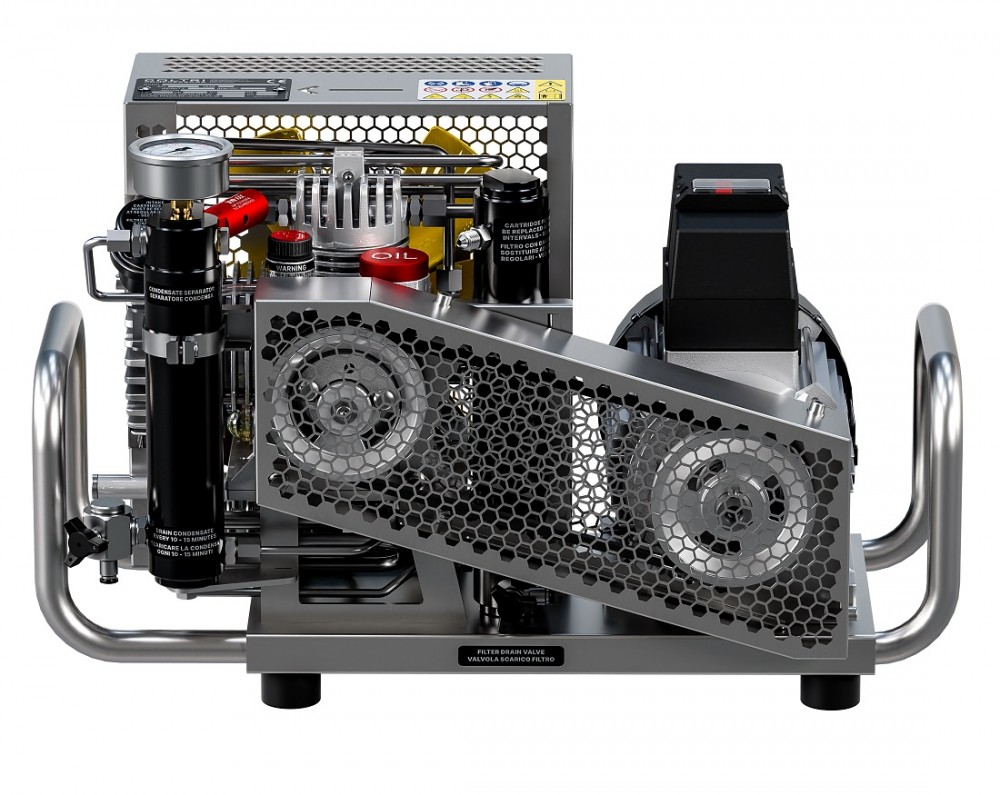

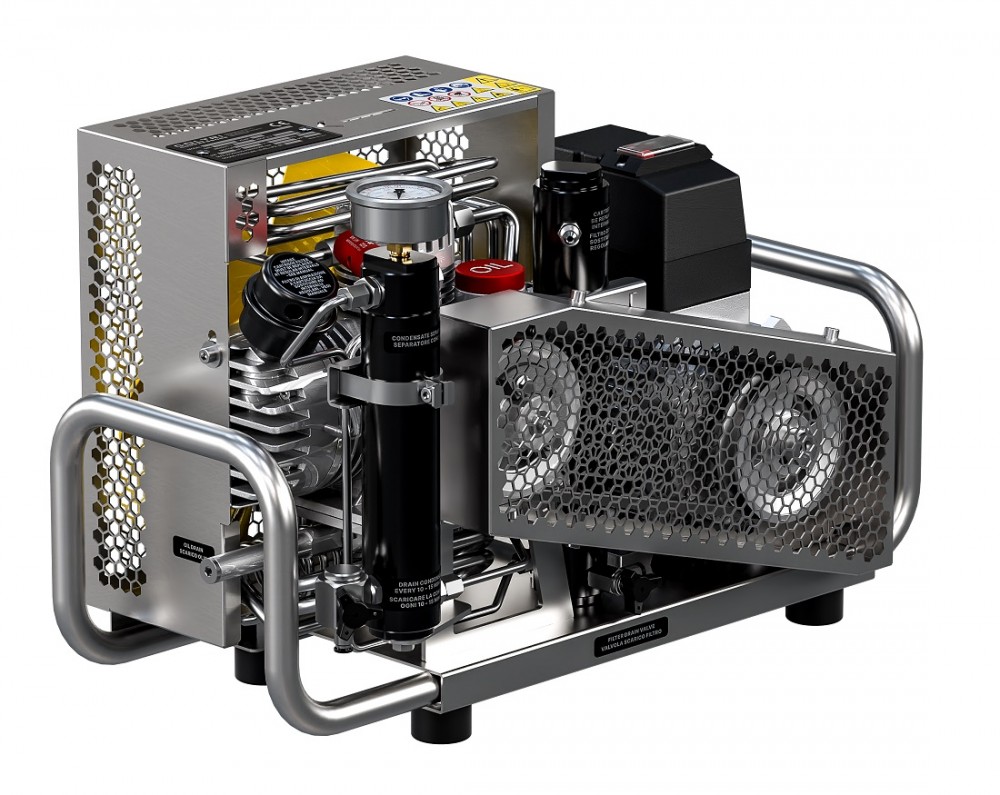

Coltri Icon LSE 100 ET - III. Phase

Name: Coltri Icon LSE 100 ET - III. Phase
Brand: Coltri
SKU: SC100131-I
Price: 2874.75 EUR
Availability: InStock

Item number:

SC100131-I

In supplier stock

The most popular small and mobile compressor on the market. Great design and easy to use!

Brand:

Coltri

Shipping time, if product is in supplier stock:

2-4 weeks

Type:

Black powder coating

Stainless Steel

Max. Working Pressure

2 874.75 €

3 387.50 €

Savings 512.75 €

Details

Standard equipment

1 cylinder connection to be chosen from DIN 232, DIN 300, INT / YOKE 232 bar
1 filling hose 1.2m long
Hour counter (only for single-phase electric motors)
Frame color Black RAL 9005

Technical data

Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen
Intake pressure: Atmospheric max 300 millibars
Nominal pressure: 230 bar / 330 bar
Working pressure: 230 bar / 330 bar
Max working pressure: 330 bar
Permissible ambient temperature range: -10° C ÷ +40° C
Permissible altitude: 0 ÷ 2.000 m SLM
Max permissible tilt: 6°
Design: Basic
Operating voltage, standard: 400 V, 50 Hz
Other operating voltage: On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%. 230 V, 50 Hz / 440 V, 60 Hz / 230 V, 60 Hz
Oil: Synthetic Coltri Oil ST 755
Oil change interval: 1 year / 1,000 h
Frame: Steel thickness 1.5 mm – color RAL 9005 – Powder coating – Scratch resistant

Purification system: Eco-filter

Specification

Compressor

Charging rate: Measured during 10 liters cylinder filling from 0-200 bar tolerance +/- 5% at + 20° C ambient temperature.

50 EM | 50 l/min / 3 m3/h / 1.7 CFM

100 EM | 100 l/min / 6 m3/h / 3.5 CFM

100 ET | 100 l/min / 6 m3/h / 3.5 CFM

Cooling air flow, min.

50 EM | 792 m3/h

100 EM | 990 m3/h

100 ET | 990 m3/h

Weight Standard model. Weight and dimensions may vary depending on accessories.

50 EM | 30 kg / 66 lb

100 EM | 38 kg / 83.7 lb

100 ET | 38 kg / 83.7 lb

Dimensions

(W x D x H)

61 x 40 x 39 cm

24 x 15.7 x 15.3 in

Motor - Power

50 EM | 1.1 kW / 1.4 Hp

100 EM | 2.2 kW / 3 Hp

100 ET | 3 kW / 4 Hp

Type

50 EM | Single-phase electric

100 EM | Single-phase electric

100 ET | Three-phase electric

Operating voltage/frequency Different voltage / frequency available on request.

50 EM | 230 V, 50 Hz

100 EM | 230 V, 50 Hz

100 ET | 400 V, 50 Hz

Rated current

50 EM | 14 A

100 EM | 14 A

100 ET | 6.7 A

Speed (RPM)

50 EM | 2.800

100 EM | 2.800

100 ET | 1.800

Protection class

IP54 (TEFC)
