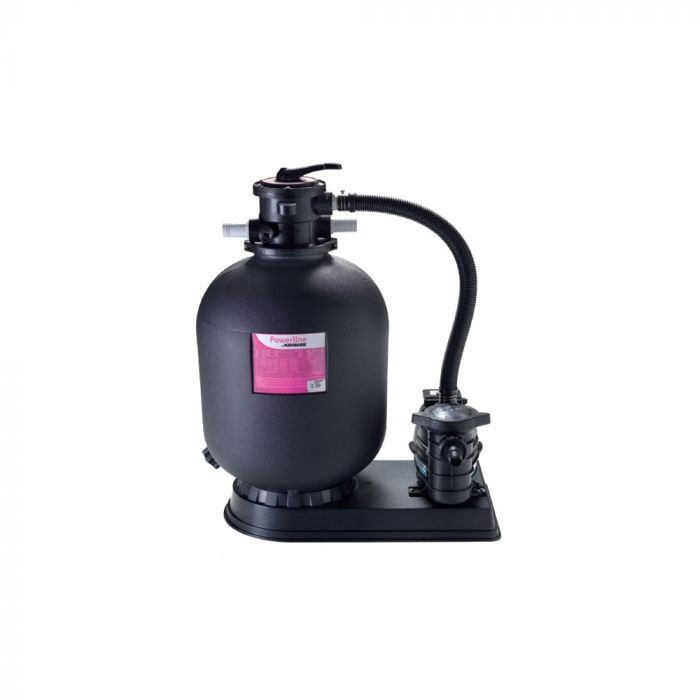

Hayward Powerline Kit 8 m3/h

The Hayward Powerline is equipped with a 6-position diverter valve, the functions of which are as follows:


filtration (water is filtered, rotated and vacuuming also takes place in this position)
backwashing (we can clean the sand in the tank in this position, for which we use the pool water)
flushing (the final step of the cleaning process, the purpose of which is to settle the sand stirred up during backwashing and to remove dirt in the changeover valve and pipes)
winter position (to be used during wintering, at which time as many openings as possible are open, so that the sand can dry out before the winter frosts set in, as well as ventilate)
emptying (usually used to remove a large amount of dirt at the bottom of the pool, for example when opening in the spring)
rotation (in this case, the device does not filter the water, it just rotates it, which is the perfect way to mix in chemicals)


Contents of the set:


350 mm diameter filter tank
6 position upper shift valve
pump with pre-filter, the output of which is 5 m3/h
filter base plate
Fittings for 32 or 38 throat tube connection


80 kg of filter sand with a particle size of 0.4-0.8 mm is required for the operation of the device.

The device is splash-proof (IPX4) - limited waterproof.

Recommended for all types of pools up to a maximum of 40 m3. It is advisable to install it near the pool. Use a laryngeal tube or a PVC pressure tube to connect it.
