Coltri Ergo ET - Three Phase

Name: Coltri Ergo ET - Three Phase
Brand: Coltri
SKU: SC002003
Price: 9500 EUR
Availability: InStock

Item number:

SC002003

In supplier stock

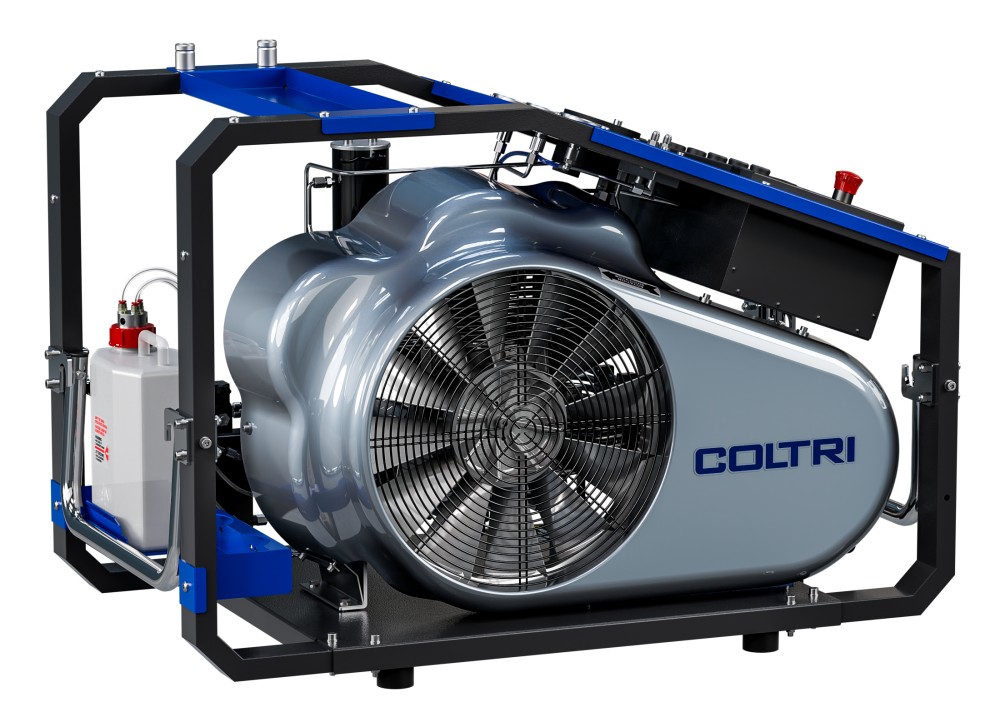

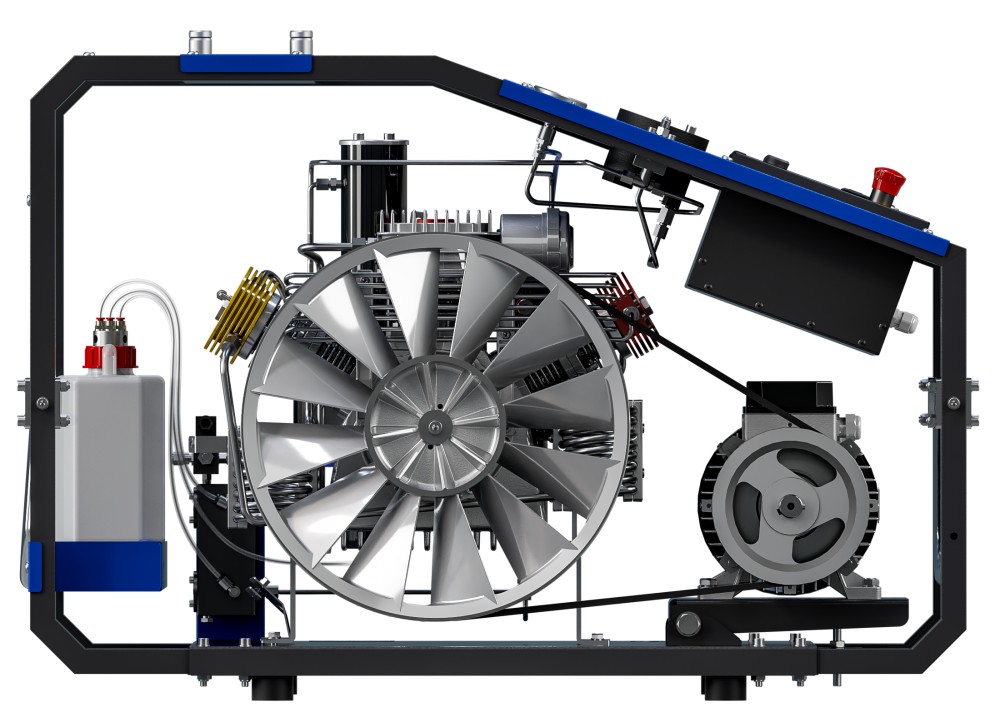

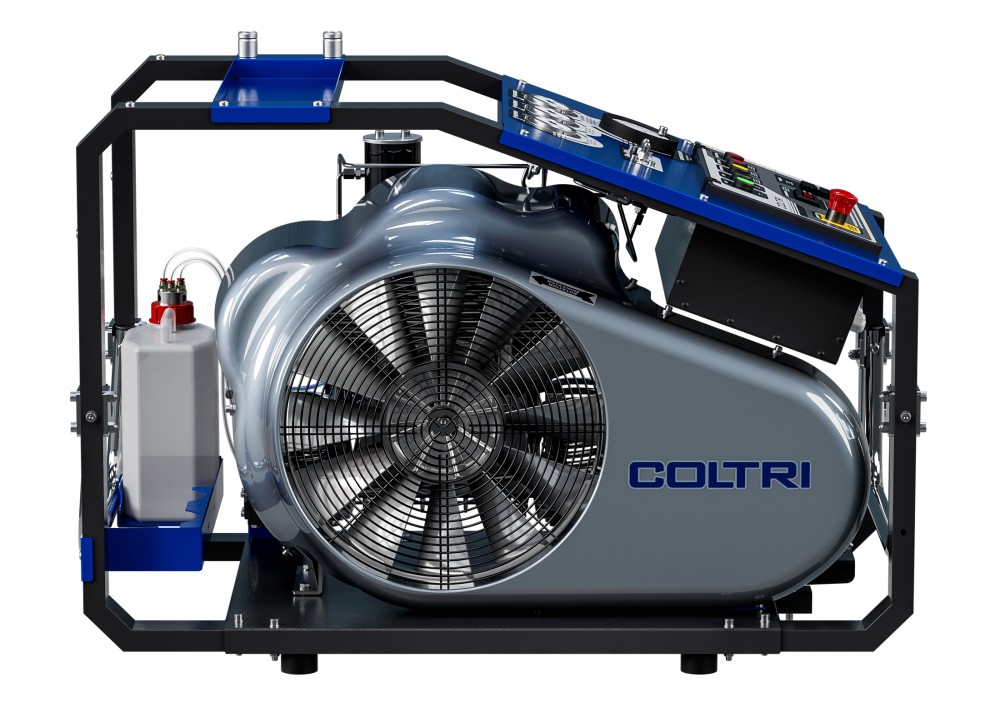

Practical to transport, ERGO stands out for its sturdiness and great operational efficiency.

Equipped with monitoring panel complete with interstage pressure gauges,

hitchhiking with adjustable pressure switch, automatic condensate drain and direction of rotation control.

Brand:

Coltri

Shipping time, if product is in supplier stock:

2-4 weeks

Type:

235L/min

315L/min

Max. Working Pressure

9 500.00 €

10 750.00 €

Savings 1 250.00 €

Details

Details

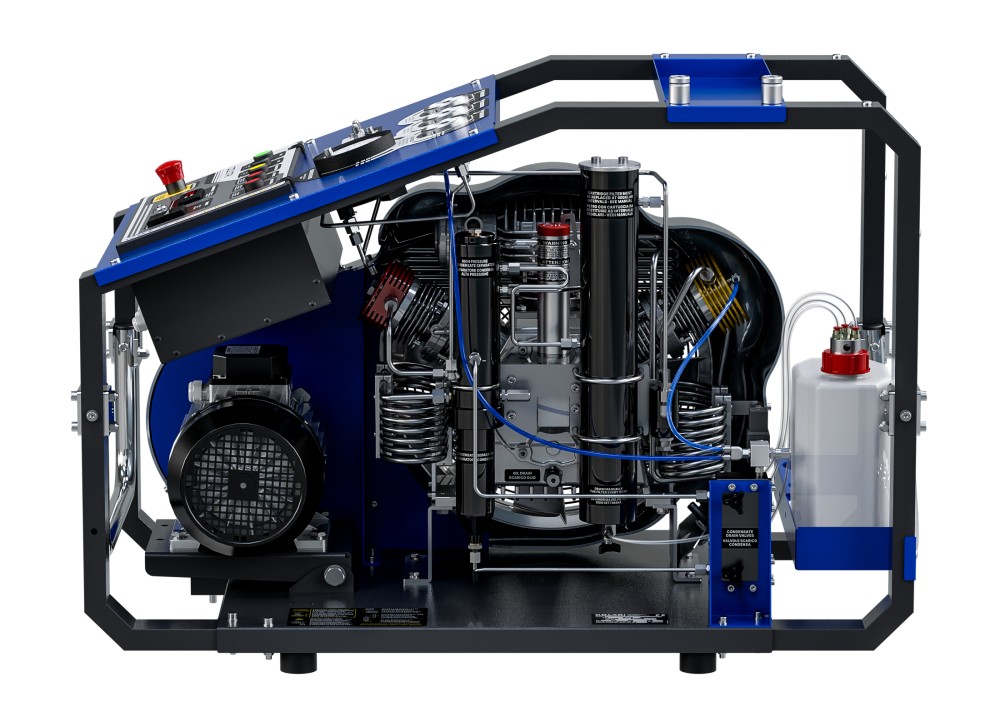

Convenient to carry, Ergo is distinguished by its robustness and high operational efficiency.

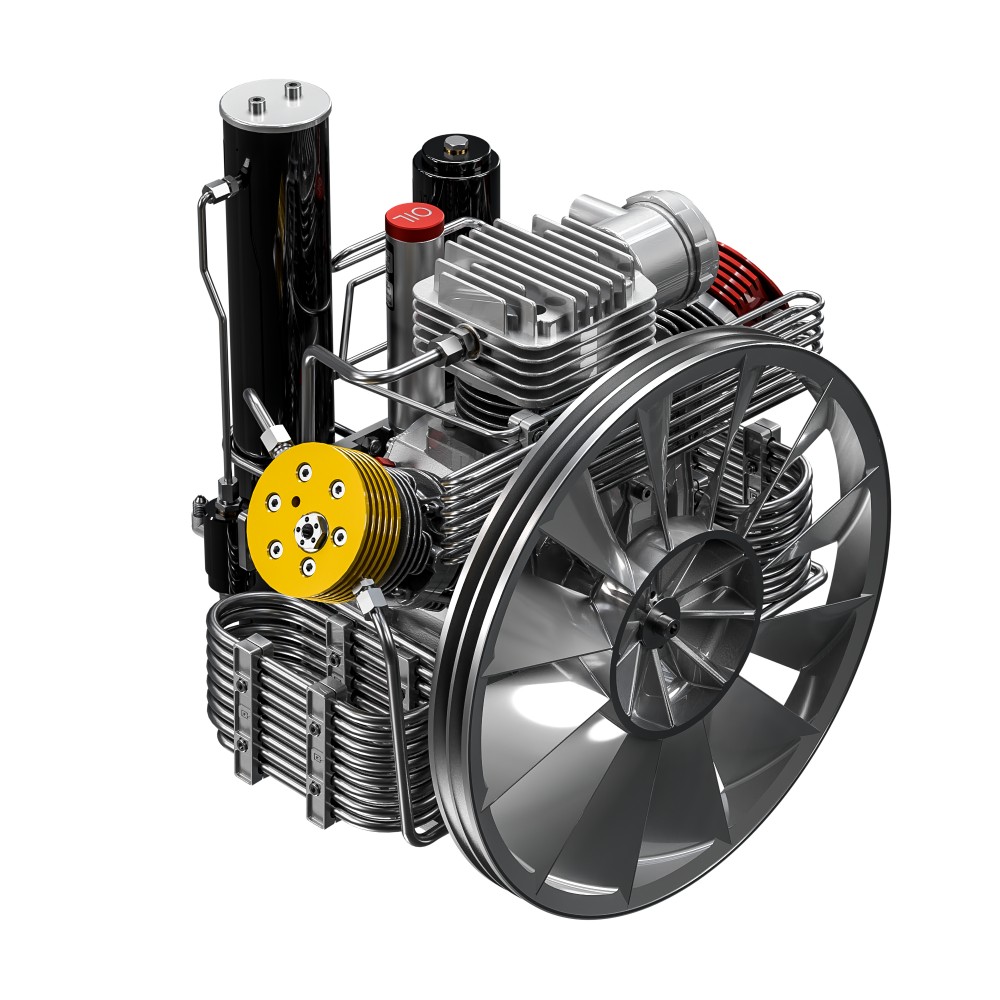

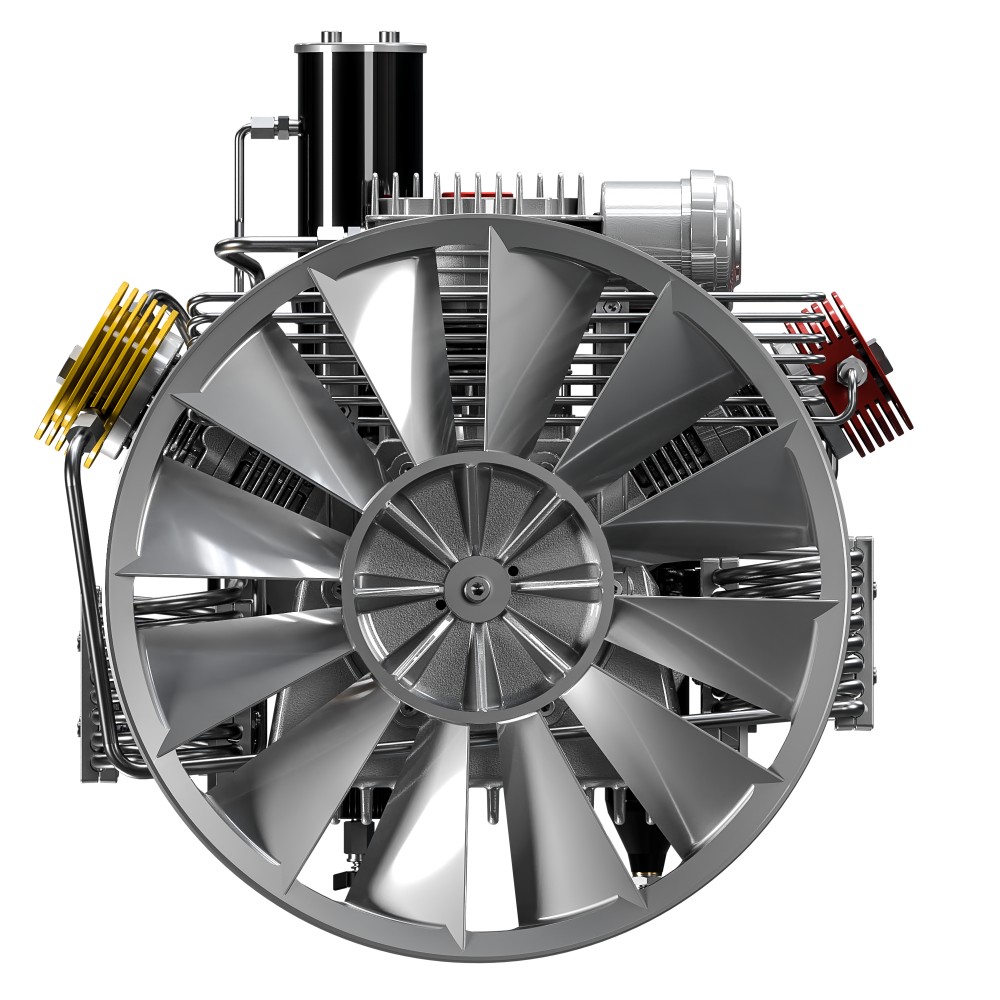

Equipped with two different pumping units, powered by electric motors, single-phase or three-phase.

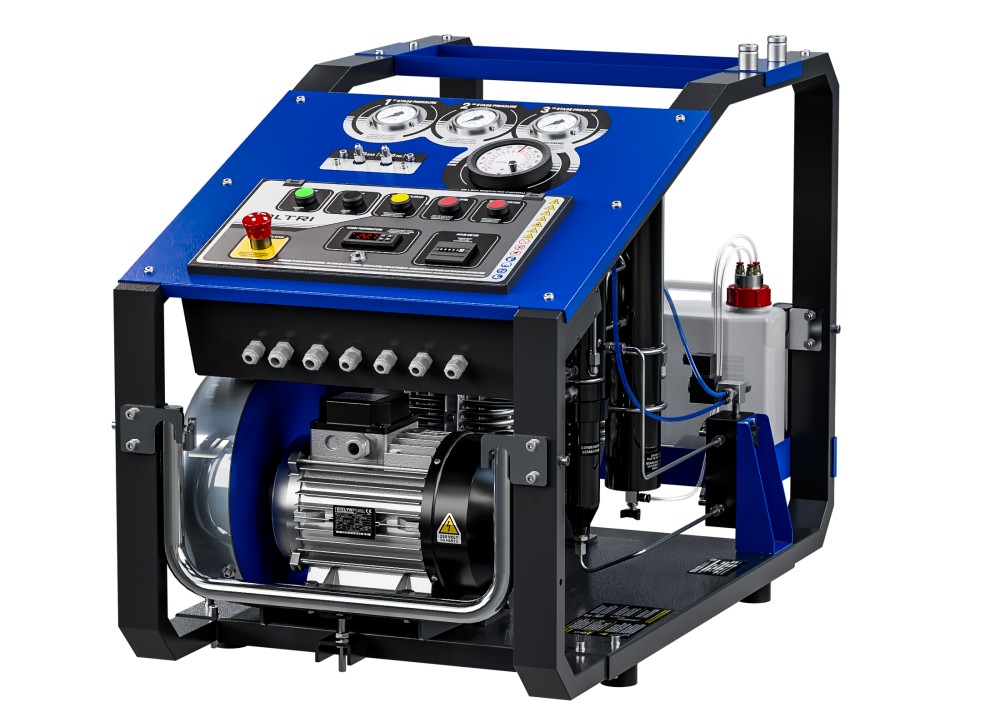

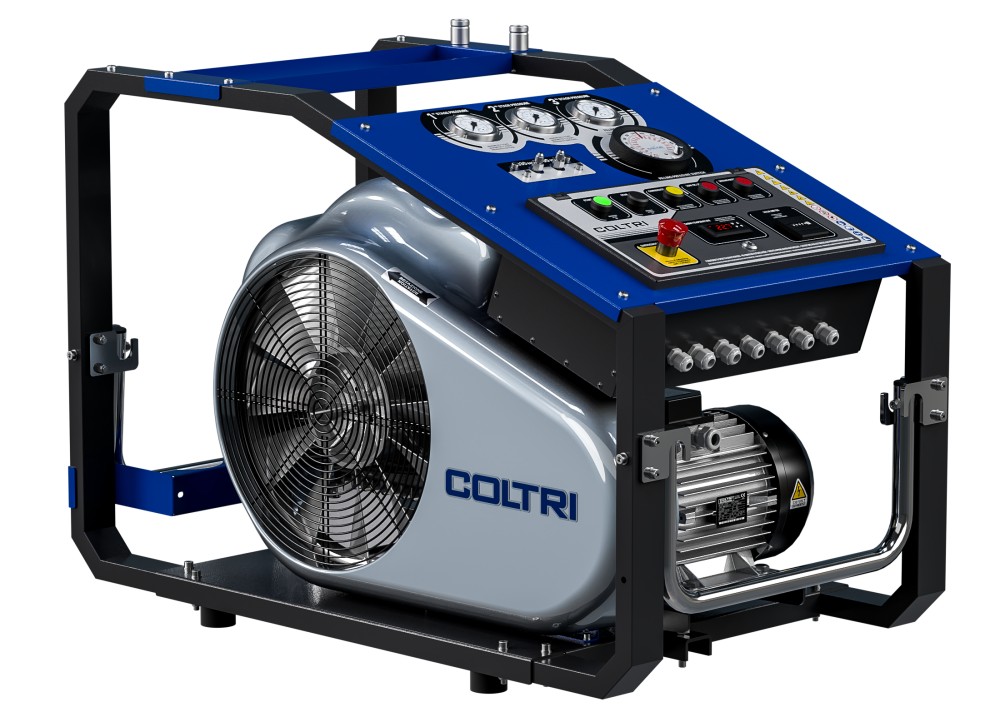

It is equipped with a monitoring panel complete with interstage pressure gauges, autostop with adjustable pressure switch, automatic condensate drain and rotation direction control.

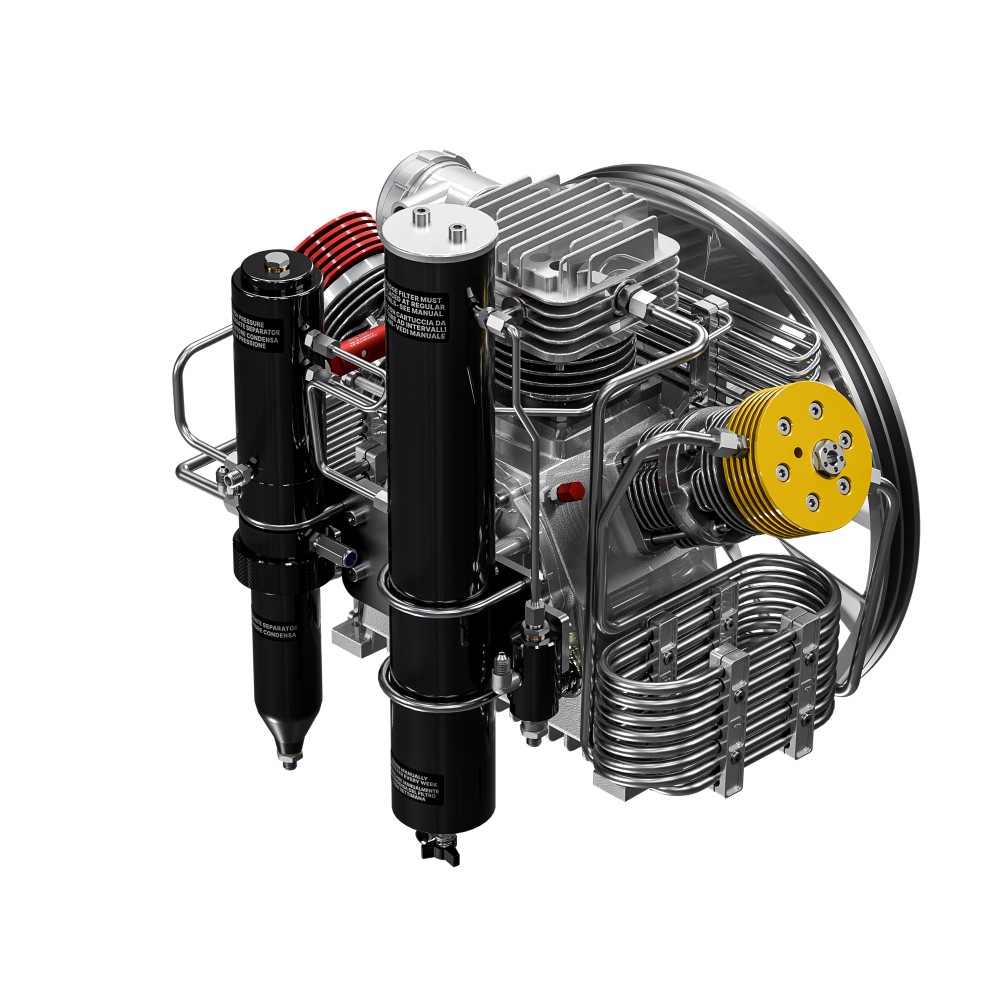

There are two high-pressure hose connections (232 to 330 bar) and a filter system Maxifilter.

Remote Refill Panels, C-Monitor, and the Multigas Analysis System (SAM) are available as options.

Basic equipment:

- 2 cylinder connections can be selected between DIN 232, DIN 300 or INT / YOKE 232 bar
- 2 hoses 1.2 m long
- Pressure relief valve
- Control instruments between stages
- Maxifilter filter system
- Inside cabin temperature with automatic shutdown
- Automatic direction of rotation control
- Pressure switch with automatic stop
- Oil level control with automatic shutdown
- Automatic condensate drainage with a transport system in the tank
- Frame color Black RAL 9005

Size: 112 x 63 x 77 cm
Weight: 159 kg

Technical data:

- Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen

- Intake pressure: Atmospheric max 300 millibars

- Nominal pressure: 250 bar / 330 bar / 360 bar

- Working pressure: 232 bar / 300 bar / 330 bar

- Max working pressure: 232 bar (monophase) – 420 bar (triphase)

- Permissible ambient temperature range: -10° C ÷ +40° C

- Permissible altitude: 0 ÷ 1.500 m SLM

- Max permissible tilt: 6°

- Design: Basic

- Operating voltage, standard: 230 V; 50 Hz / 400 V; 50 Hz

- Other operating voltage: On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%.
230 V, 50 Hz / 440 V, 60 Hz

- Oil: Synthetic Coltri Oil ST 755

- Oil change interval: 1 year / 1,000 h

- Frame: Steel thickness 1.5 mm – color RAL 9005 – Powder coating – scratch-resistant
