Coltri Mini Silent ET - Three Phase

Name: Coltri Mini Silent ET - Three Phase
Brand: Coltri
SKU: SC000148
Price: 4072.5 EUR
Availability: InStock

Item number:

SC000148

In supplier stock

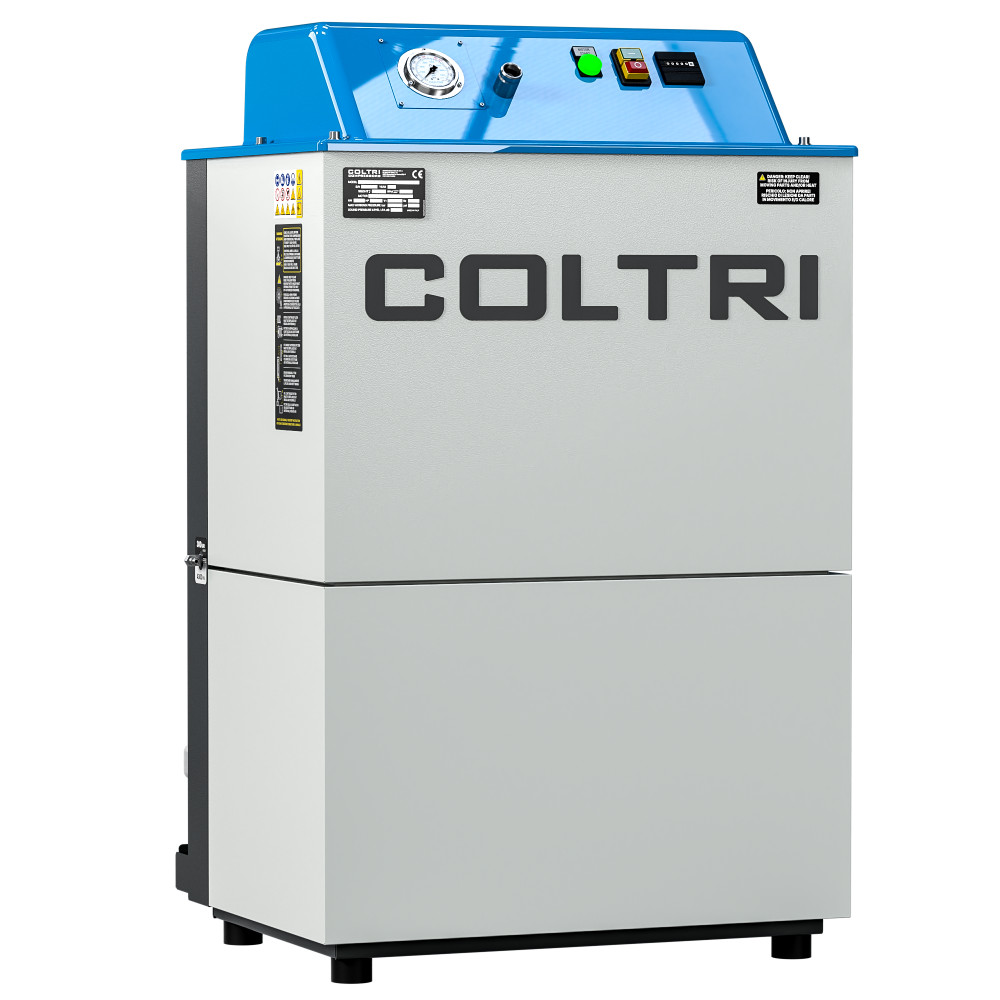

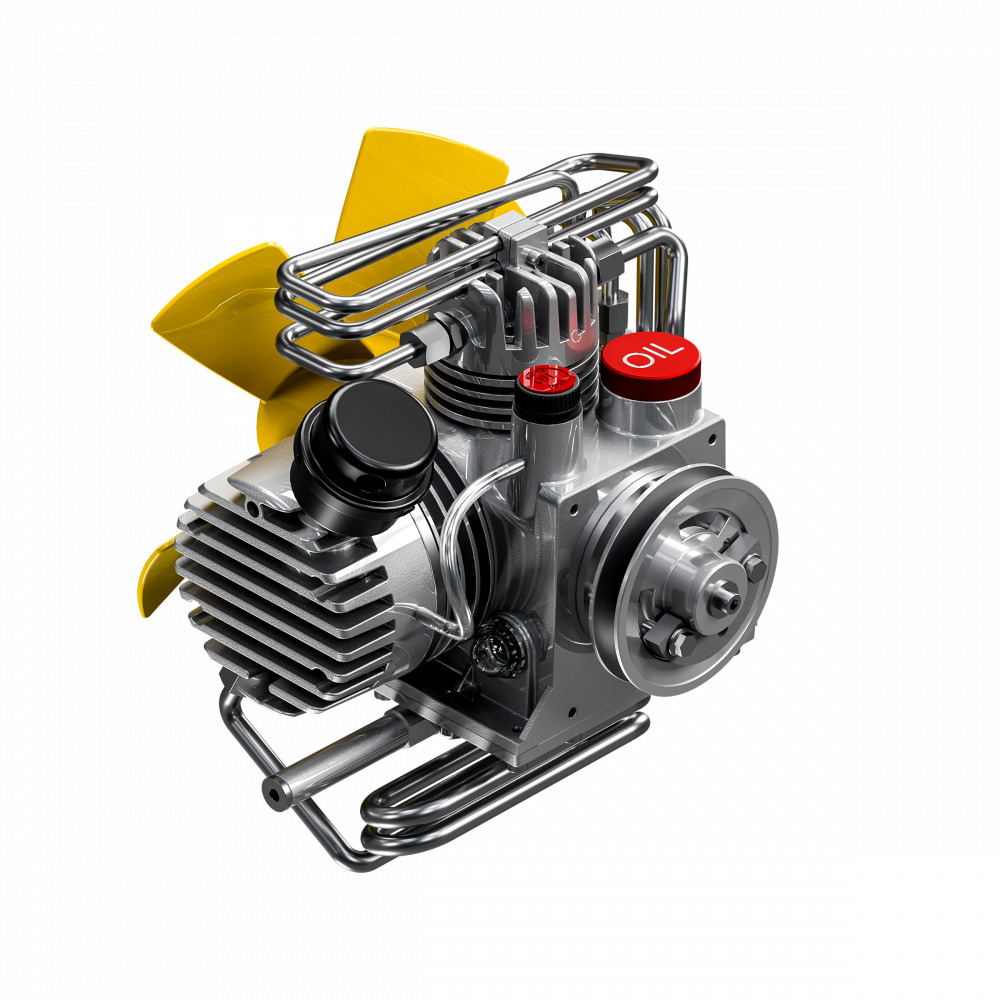

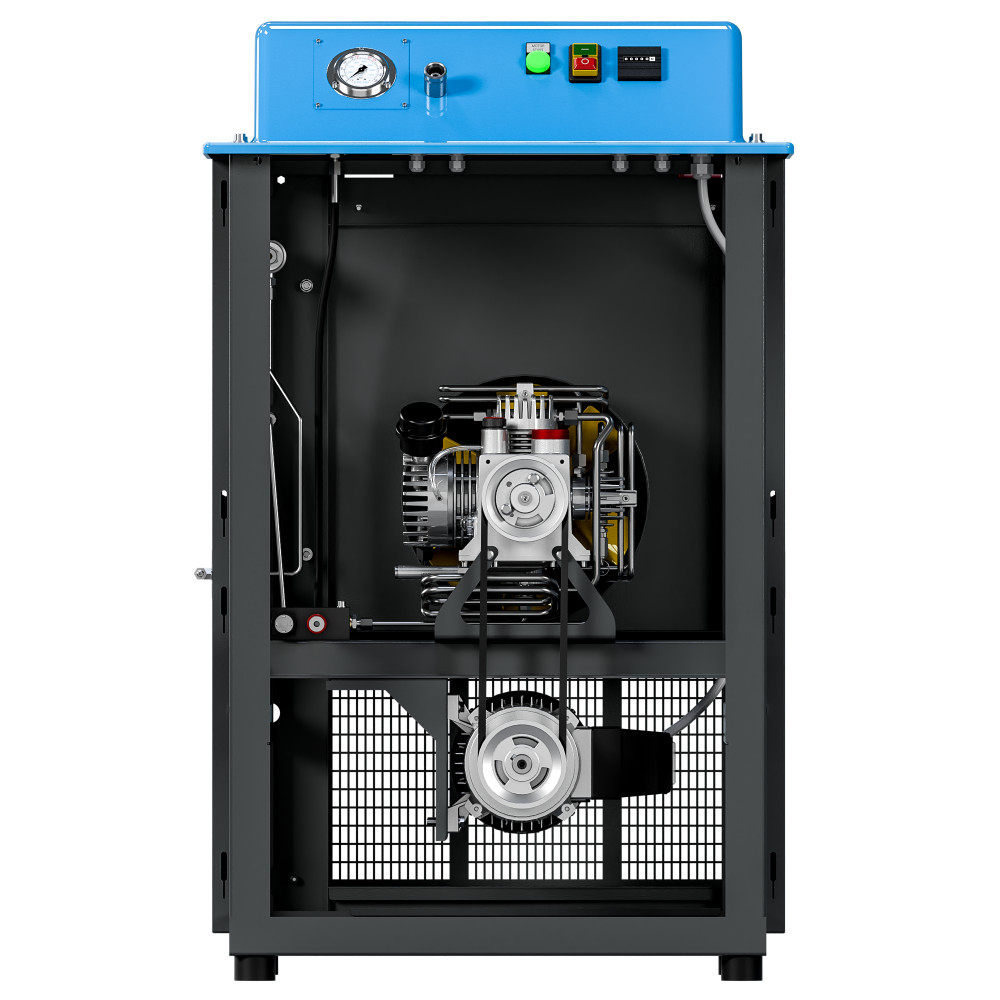

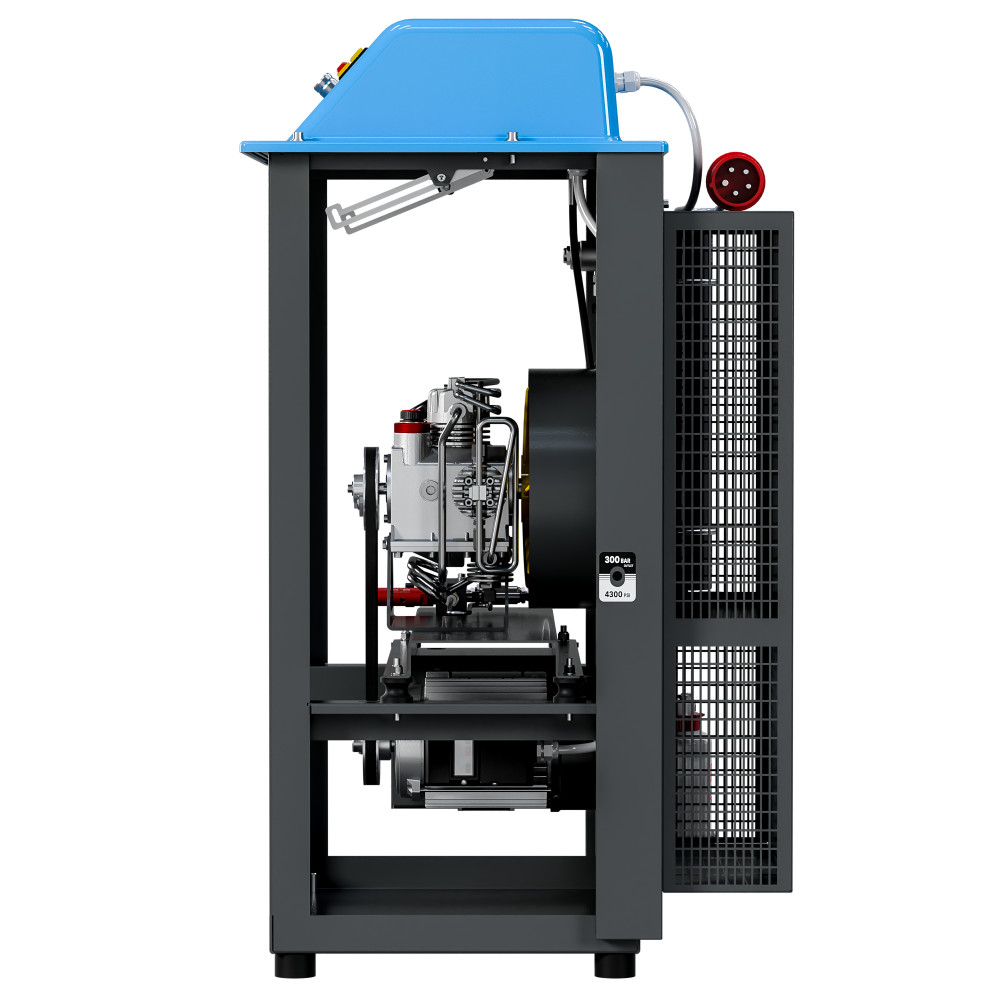

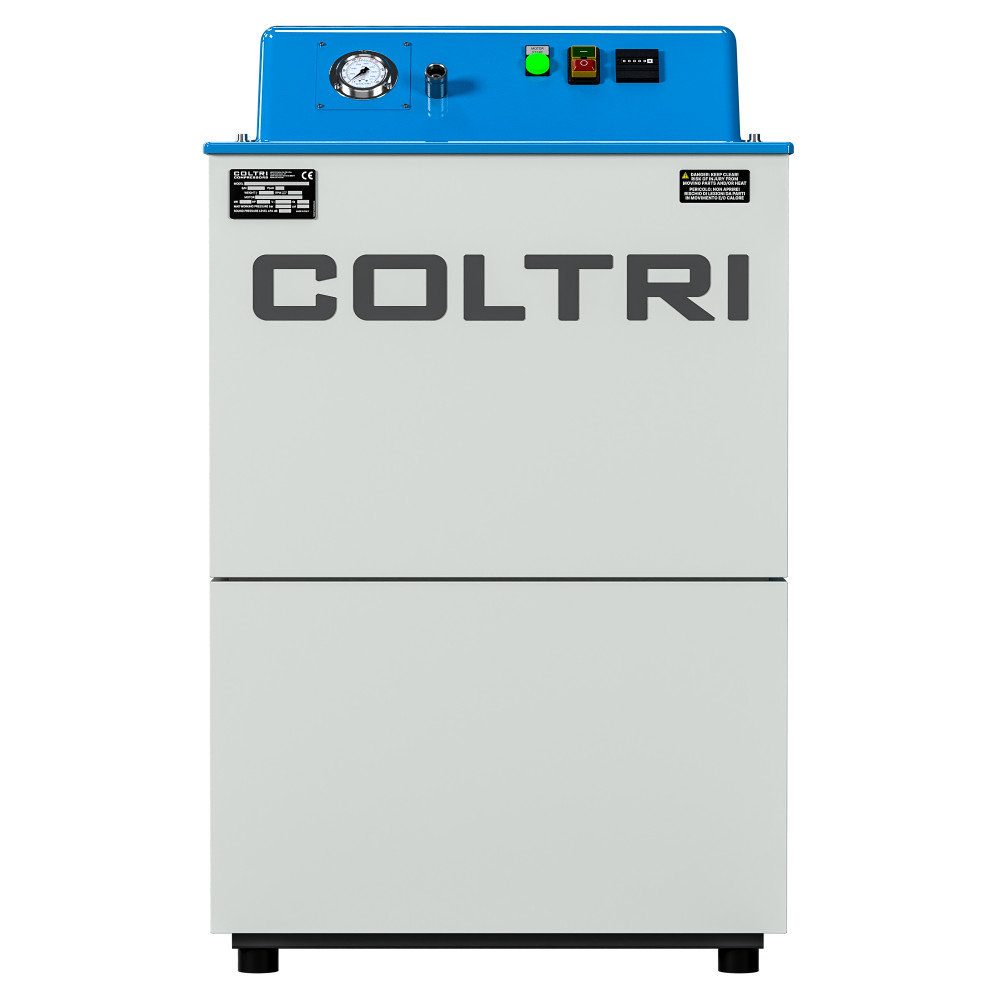

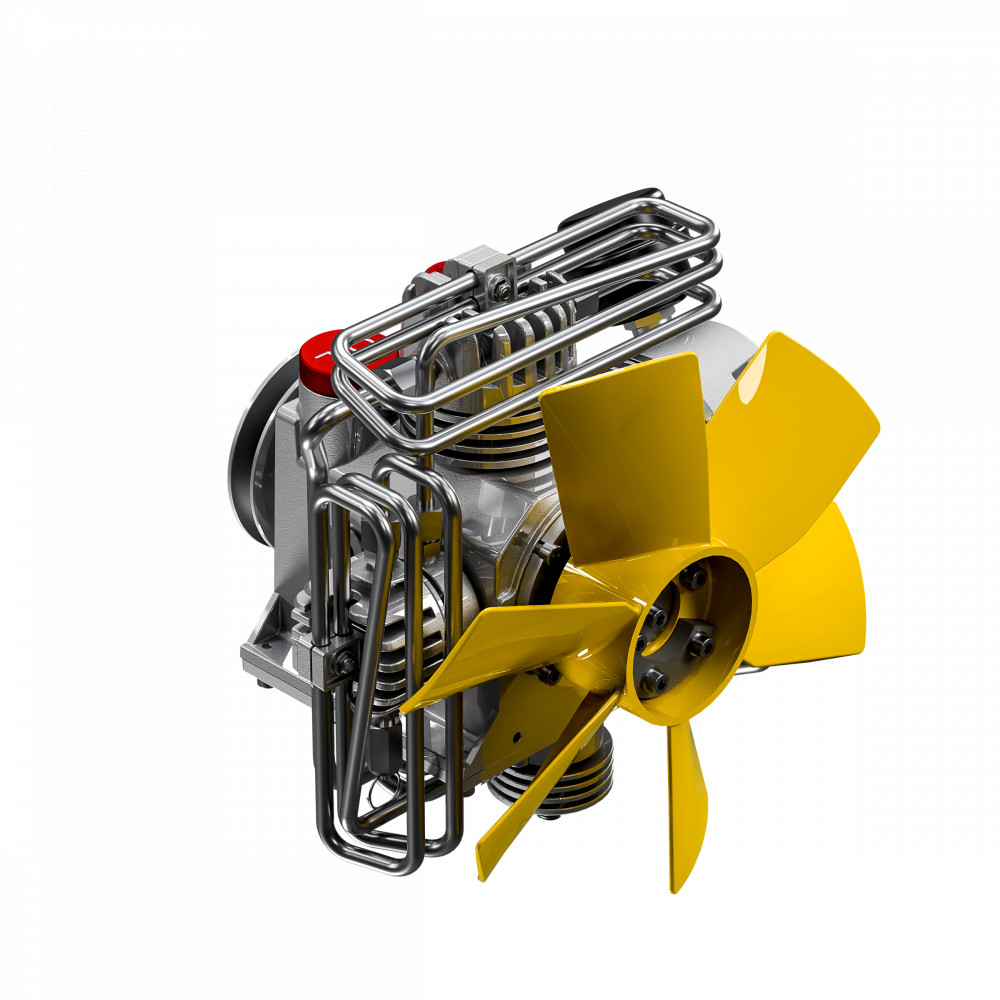

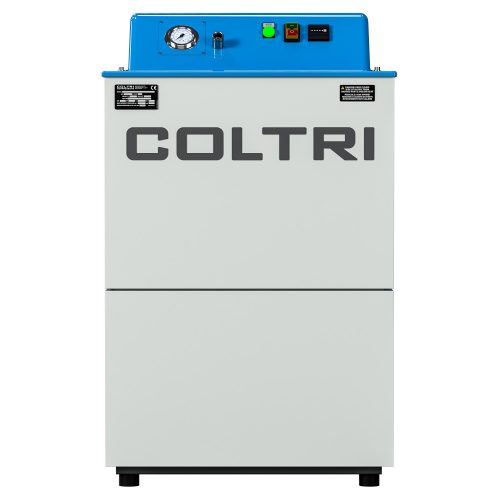

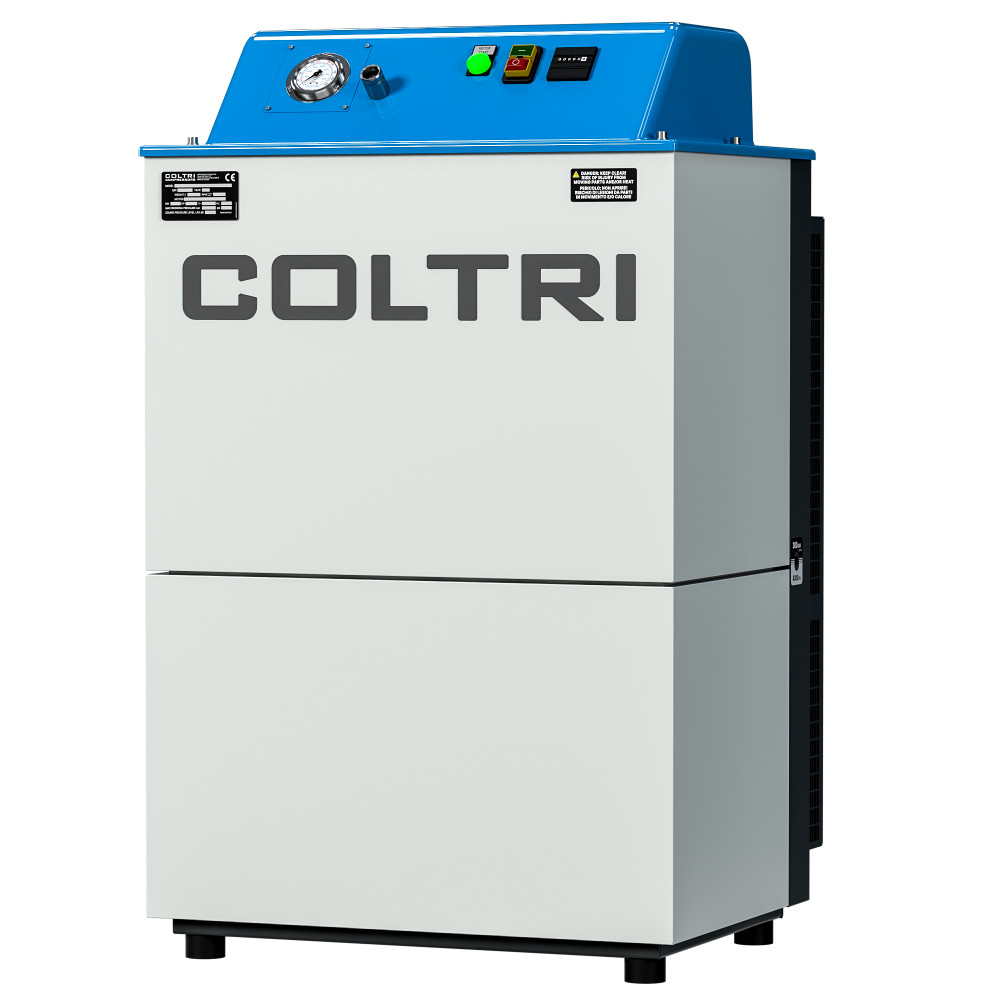

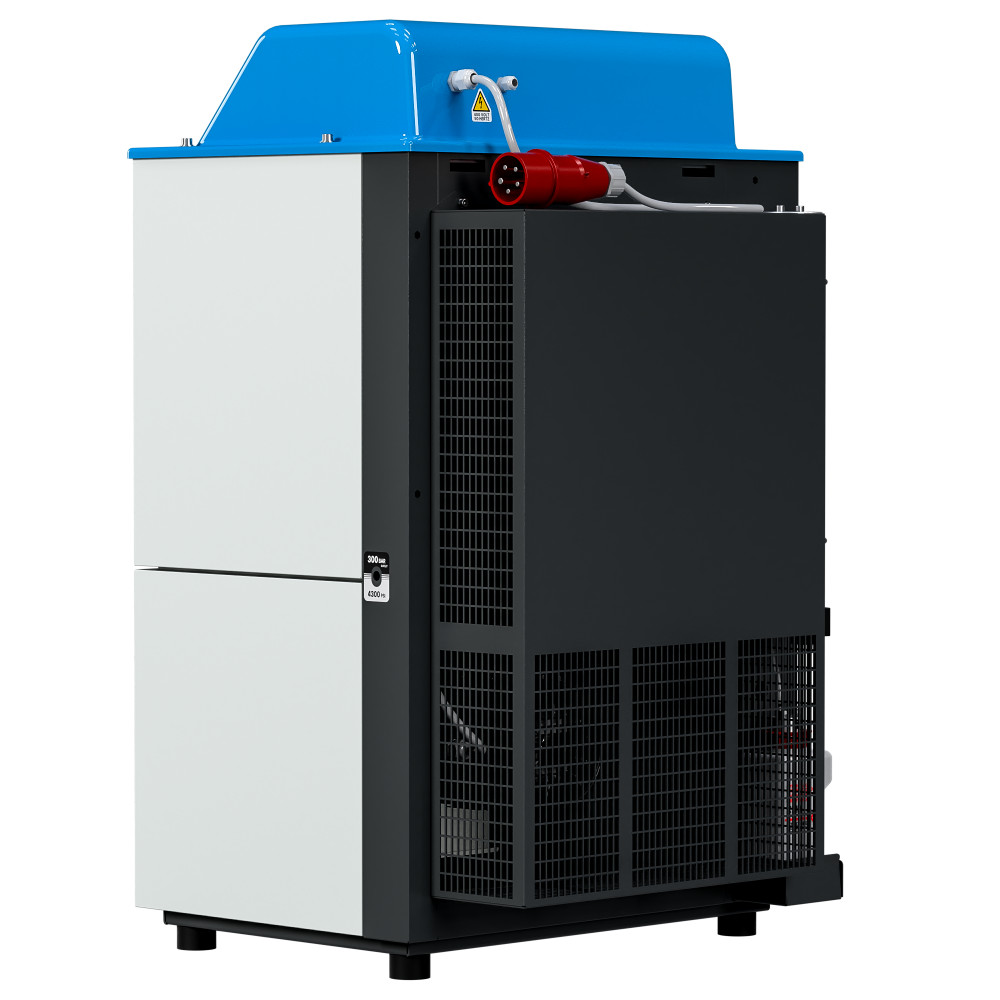

The Coltri breathing air compressors of the Mini Silent series, equipped with 100 or 125 l/min pumping unit.
They are characterized by extreme silence, obtained without sacrificing performance.

Brand:

Coltri

Shipping time, if product is in supplier stock:

2-4 weeks

Type:

100L/min

125L/min

Max. Working Pressure

4 072.50 €

4 725.00 €

Savings 652.50 €

Details

Details

Standard equipment:

- 1 filling connection to be chosen between DIN 232, DIN 300 or INT / YOKE 232 bar
- 1 filling hose 1.2m long
- Hour counter
- Pressure maintenance valve
- Hitch-hiking
- MAXIFILTER purification system

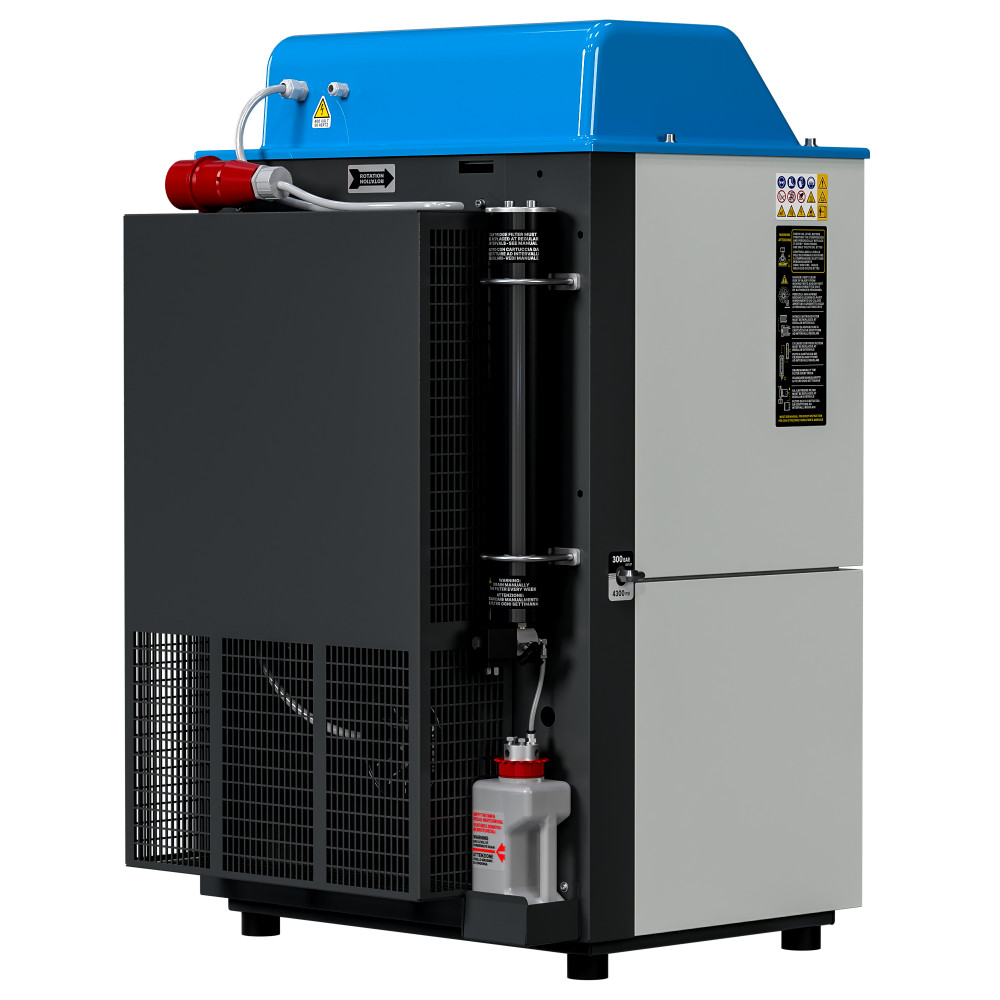

- Automatic condensate drain with conveyor system in the tank
- Frame color RAL 7035 + RAL 6018

Technical data:

- Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen

- Intake pressure: Atmospheric max 300 millibars

- Nominal pressure: 250 bar / 330 bar / 360 bar

- Working pressure: 232 bar / 300 bar / 330 bar

- Max working pressure: 330 bar

- Permissible ambient temperature range: -10° C ÷ +40° C

- Permissible altitude: 0 ÷ 1.500 m SLM

- Max permissible tilt: 6°

- Design: Basic

- Operating voltage, standard: 400 V; 50 Hz

- Other operating voltage: On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%.
230 V, 50 Hz / 440 V, 60 Hz / 230 V, 60 Hz

- Oil: Synthetic Coltri Oil ST 755

- Oil change interval: 1 year / 50 h

- Frame: Steel thickness 1.5 mm – color RAL 5015 – Powder coating – scratch-resistant

- Noise: LpA 66 dB
