Coltri Icon 100 SH - Benzinmotoros

Name: Coltri Icon 100 SH - Benzinmotoros
Brand: Coltri
SKU: SC100100-R-N
Price: 2714.75 EUR
Availability: InStock

Item number:

SC100100-R-N

In supplier stock

Dedicated to the most extreme trips. Available with a petrol engine, Icon Petrol is the Coltri portable compressor that expresses its great qualities
without the need for electricity. 232 Bar or 330 Bar.

Brand:

Coltri

Shipping time, if product is in supplier stock:

2-4 weeks

Type:

Black powder coating

Stainless Steel

Max. Working Pressure

2 714.75 €

3 192.00 €

Savings 477.25 €

Details

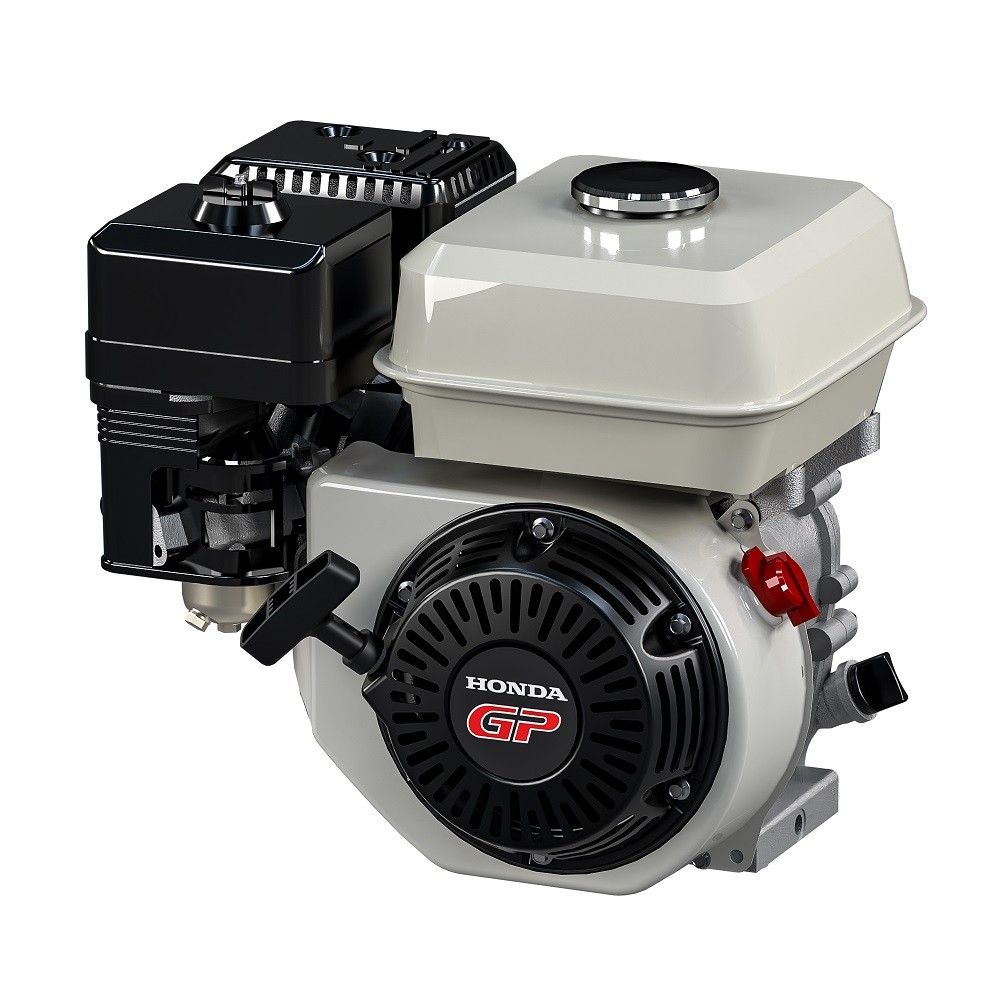

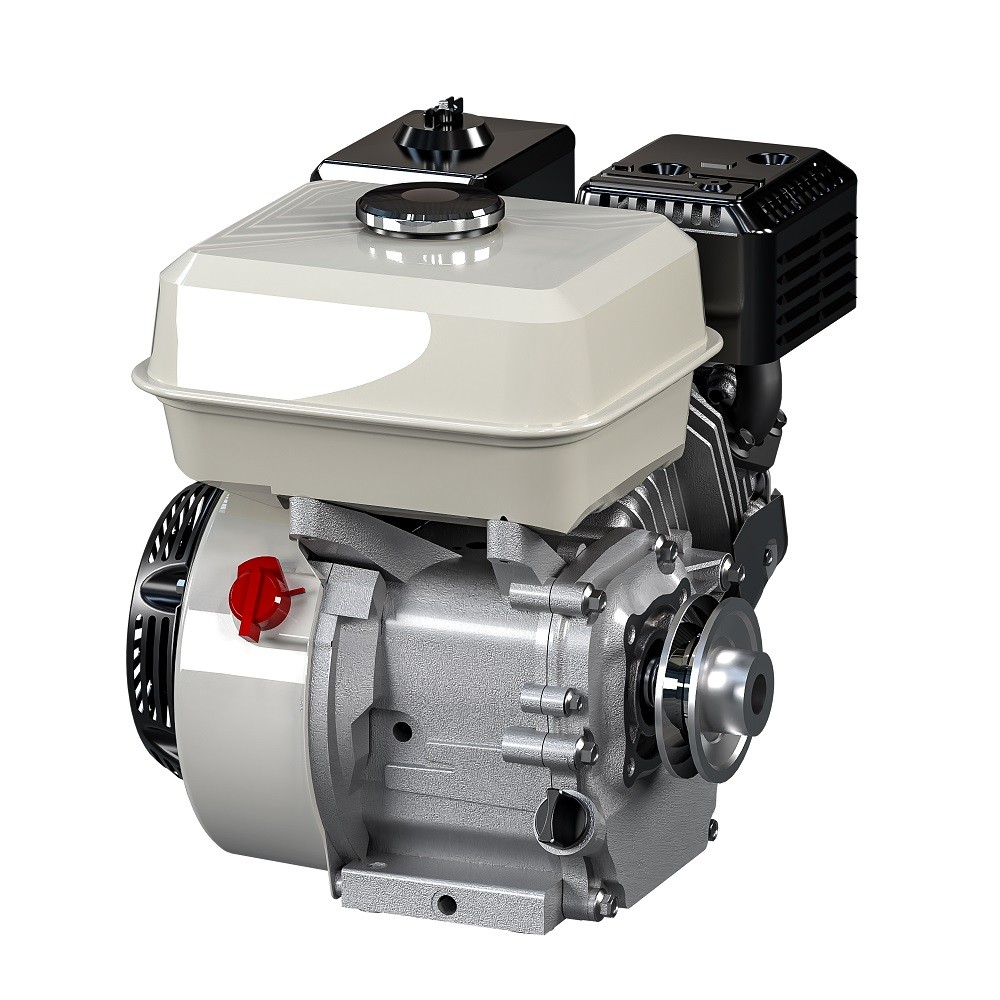

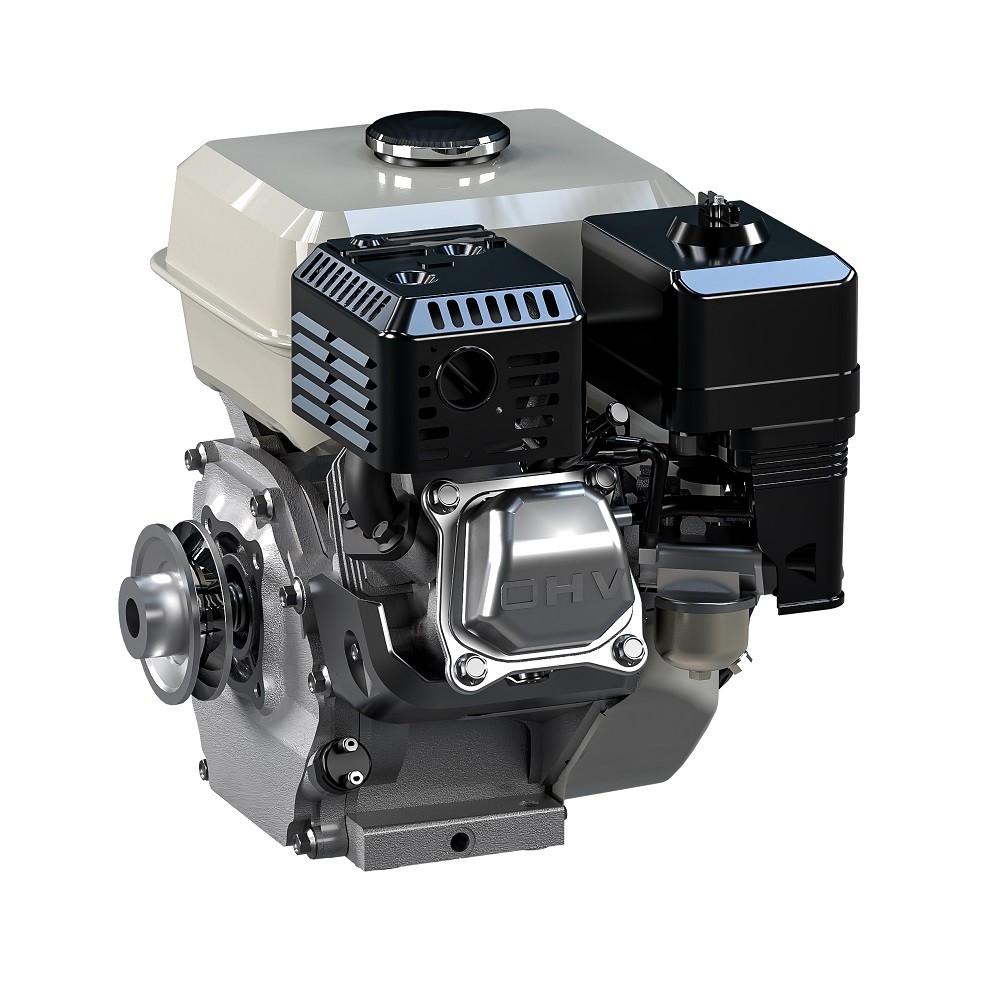

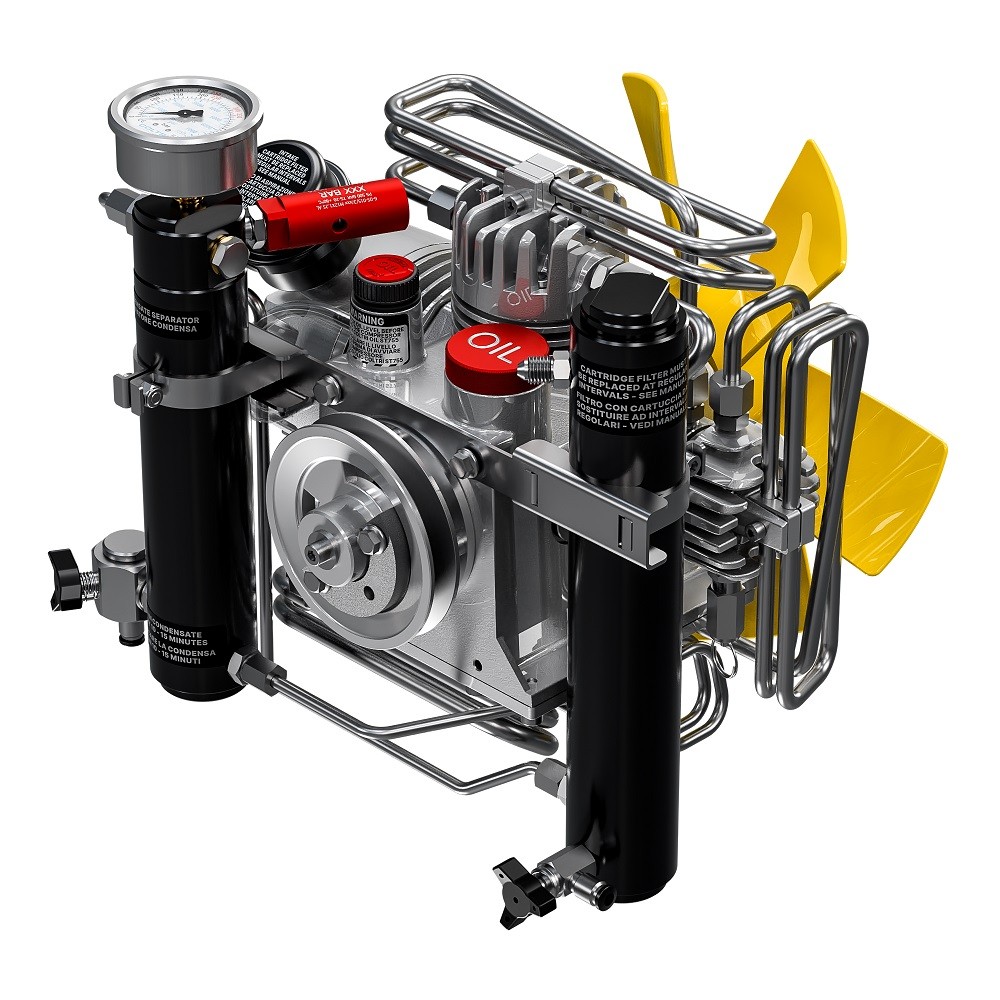

Icon Petrol is available with a Honda GP 200 engine and is equipped with the MCH 6 pump unit. Standard equipment includes a hose filling connection with operating pressures from 232 to 330 bar.

Standard equipment

1 cylinder connection to be chosen from DIN 232, DIN 300, INT / YOKE 232 bar
1 filling hose 1.2m long
Hour counter (only for single-phase electric motors)
Frame color Black RAL 9005 or Stainless Steel

Technical data

Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen
Intake pressure: Atmospheric max 300 millibars
Nominal pressure: 230 bar / 330 bar
Working pressure: 230 bar / 330 bar
Max working pressure: 330 bar
Permissible ambient temperature range: -10° C ÷ +40° C
Permissible altitude: 0 ÷ 2.000 m SLM
Max permissible tilt: 6°
Design: Basic
Operating voltage, standard: 400 V, 50 Hz
Other operating voltage: On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%. 230 V, 50 Hz / 440 V, 60 Hz / 230 V, 60 Hz
Oil: Synthetic Coltri Oil ST 755
Oil change interval: 1 year / 50 h
Frame: Steel thickness 1.5 mm – color RAL 9005 – Powder coating – Scratch resistant or stainless steel
Purification system: Eco-filter

Specification

Charging rate: Measured during 10 liters cylinder filling from 0-200 bar tolerance +/- 5% at + 20° C ambient temperature.

100 SH | 100 l/min / 6 m3/h / 3.5 CFM

Purification system | Eco-filter

Cooling air flow, min.

100 SH | 990 m3/h

Weight
Standard model. Weight and dimensions may vary depending on accessories.

100 SH | 35 kg / 81.8 lb

Dimensions
(W x D x H)
78 x 32 x 35 cm
30.7 x 12.5 x 13.7 in

Motor - Power

100 SH | 4.3 kW / 5.7 Hp

Type

100 SH | Petrol Honda GP 200

Speed (RPM)

100 SH | 3.600
